MacBook Pro A1278 Q5490 Repair

Published July 5, 2019 at 647 × 380 in MacBook Pro A1278 Q5490 Repair

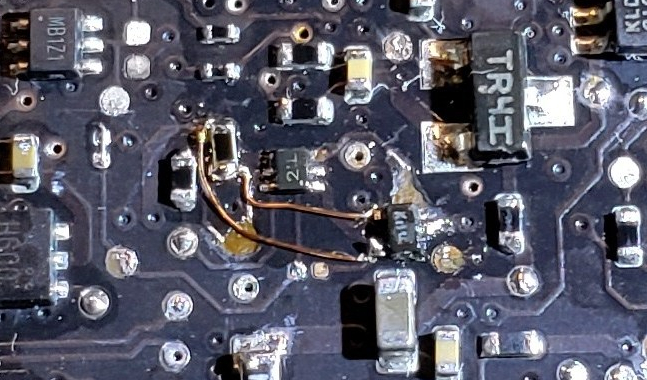

Replaced PFET half of Q5490 (centre) with NTK3142P, bypassing lost traces/probe points. R5494 replaced with wire jumper, on left.
