Ramble: Fixstars’ 6TB SATA SSD – is it a thing?

Posted on by
Reply

If you know me personally, you’ll know that I absolutely love SSDs. Every PC I own has one, and I can’t stand to use a computer that runs off an HDD anymore. Naturally, when I read about a 6 TERABYTE SSD coming out, it piqued my curiosity.

Photo is owned by Fixstars and is not my property. Retrieved from http://www.fixstars.com/en/news/wp-content/uploads/2015/05/SSD-6000M.png

Official SSD-6000M promotional photo, taken from Fixstars’ press release

A Japanese company by the name of Fixstar has recently announced the world’s first 6TB SATA-based SSD. Although 2.5″ SSDs in such a capacity range already exist, they’re SAS (Serial Attached SCSI) based which limits them primarily to server/datacenter usage. According to Fixstars’ press release, their SSD-6000M supports sequential read speeds of 540 MB/s, and sequential write speeds of 520 MB/s, which is on par with most modern SATA III (6 Gbps) SSDs on the market today.

Concerns

However, after reading a bit online, I’m beginning to have some concerns about the drive’s real-world performance. One thing that is rather worrying is that the company has only mentioned sequential I/O speeds and has said nothing on random I/O or read/write latency; although SSDs do have much better sequential speeds than their mechanical spinning counterparts, they really shine when it comes to random I/O (which makes up much of a computer’s typical day-to-day usage). In the early, early days of SSDs, manufacturers cared only about sequential I/O and it resulted in some SSDs that were absolutely terrible when it came to random I/O (fun fact: I once had an early SSD, the Patriot PS-100, and its performance was so bad that it actually turned me off of SSDs for a few years, so I know how bad such unoptimized SSDs can perform).

Construction

The SSD appears to be made up of 52 eMMC (embedded MultiMediaCard) chips in a sort of RAID 0 configuration and an FPGA (field-programmable gate array) as the main controller. In layman’s terms, this SSD is literally made up of a bunch of SD cards “strapped” together with a chip so that it appears as one single drive. In that sense, one can make a similar solution using a board like this, which parallels multiple microSD cards to act as a single ‘SSD’.

Image retrieved from Amazon (http://ecx.images-amazon.com/images/I/51y0QqWL5sL.jpg)

The consumer equivalent of the SSD-6000M: SD cards and a controller chip. You can even get them from Amazon.

Conclusion

I’m wary of how well this SSD is going to take off. It could end up being a tremendous success, but it’ll certainly be out of the reach of the consumer market – either by its potentially poor random I/O performance, or its price (apparently it will cost well over $6000 USD).

Advertisement

Quick Review: Littelfuse Smart Glow automotive fuse

Posted on by
2

2015-05-09 16.29.34It Glows when it Blows™! [add obligatory Michael Scott line here]

(I’m sorry. I couldn’t help myself.)

Okay, now that the lowbrow humor has been dealt with, I had to replace a car fuse because of a shorted 12-volt power socket. Luckily, I was able to replace the fuse without the circuit blowing again; however, I had used the only spare fuse in the fuse box and needed to buy some more in case the fault was to recur. Browsing my local Canadian Tire, I stumbled upon a pack of fuses that allowed for a visual check for blown fuses by simply turning on the ignition: the Littelfuse Smart Glow fuse. A 36-pack of these fuses cost about $35 Canadian, making them a bit pricier than their non-illuminated counterparts.

Construction

Closeup of fuse, LED and resistor

Closeup of fuse, LED and resistor

The Smart Glow fuse is comprised of three main components: the actual fuse (which is really just a regular automotive fuse), a 360-ohm resistor, and a dual red LED package with the diodes in inverse parallel to allow for the fuse to glow regardless of orientation. The LEDs and resistors are affixed to the fuse body using various epoxies: an opaque red epoxy to glue the components down, a conductive silver-filled epoxy to provide an electrical connection without soldering, and a clear epoxy to protect the components from damage; the fuse amperage is re-printed on top of the protective epoxy coating since the resistor and LED obscure the original fuse’s markings.

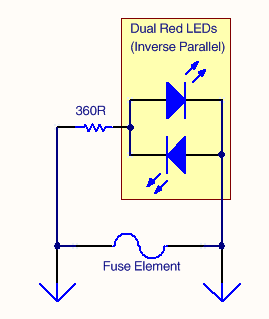

Schematic of Littelfuse Smart Glow fuse

Schematic of Littelfuse Smart Glow fuse

Performance

Simply put, this acts like any other automotive fuse would. The only difference is that the LED will illuminate if the fuse is blown, and sufficient load is still present in the circuit to provide enough current for the LED to act as a fault indicator.

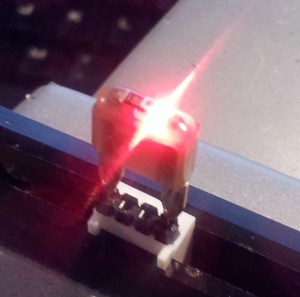

Fuse blown and LED indicator lit with 5 volts

Fuse blown and LED indicator lit with 5 volts

When testing the fuse’s brightness, I found it to be quite noticeable at 5 volts and almost blindingly bright when run at 14.4 volts (the approximate charging voltage for a 12-volt car battery).

Simulation of LED indicator

Simulation of LED indicator

Running this circuit through a simulator, the LED has almost 35 mA of current running through it. Given how LEDs are typically rated for a maximum of 20 mA, this LED is not going to last long; that said, it shouldn’t need to run for a long time as the LED’s only purpose is to notify the user that the fuse needs to be replaced (and at that point the fuse and its indicator will be disposed of anyway).

Conclusion

Yes, it glows when it blows; I have nothing more to add.

(The same could be said for Rudolph the Red-Nosed Reindeer, but he’s a non-electronic entity and is therefore outside the scope of this blog. :P)

Review of SanDisk Extreme CompactFlash 32GB (SDCFXS-032G)

Posted on by
3

After my previous review of a Silicon Power 8GB CompactFlash memory card, I was looking around for more CF cards to review, in the hopes of finding a higher-performing card with S.M.A.R.T. health reporting and the ability of acting as a “fixed disk” (that is, identifying to the system as a hard drive rather than a removable disk), and decided to purchase this memory card from Amazon.

Advertised specifications

The card’s specifications indicate that the CompactFlash card is capable of 120MB/s sequential read and 60MB/s sequential write speeds, has a lifetime warranty and comes with a license key for a 1-year subscription to their RescuePRO data recovery software. It is advertised to have internal RTV (room-temperature vulcanization) silicone potting, has an operational temperature range of -25 to 85 degrees Celsius (-13 to 185 Fahrenheit), and uses their “ESP (Enhanced Super-Parallel) Technology” which I presume is some sort of proprietary multi-channel controller, and is UDMA 7 (167 MB/s maximum interface speed) capable.

Benchmark – Setup

To connect the card to my computer, I used a CompactFlash-to-IDE converter and a Marvell 88SE9128-based SATA/PATA host bus adapter. This allows me to use up to UDMA 6 (133 MB/s maximum interface speed) as UDMA 7 is basically restricted to cameras as it’s only part of the CompactFlash official specifications.

Benchmark – CrystalDiskMark

For this test, I manually zero-filled the card using Hard Disk Sentinel, formatted it with exFAT, then ran CrystalDiskMark, set to 3 runs with a 500MB file size using random data, all zeros (0x00), and all ones (0xFF).

Data Type Test Read (MB/s) Write (MB/s) IOPS Read IOPS Write
Random Sequential 103.2 52.45
512K Random 99.55 29.57
4K Random (QD1) 11.37 0.916 2775.2 223.6
4K Random (QD32) 17.24 1.413 4208.2 344.9
All 0 (0x00) Sequential 104.3 54.25
512K Random 98.27 31.22
4K Random (QD1) 11.36 1.1 2773.3 268.5
4K Random (QD32) 17.39 1.263 4244.5 308.4
All 1 (0xFF) Sequential 104.5 53.95
512K Random 98.05 25.84
4K Random (QD1) 11.19 1.112 2733 271.4
4K Random (QD32) 17.32 1.437 4229.3 351

It appears that there is no significant difference between the tests depending on what data was used for the benchmark.

Benchmark – AS SSD

As with CrystalDiskMark, I zeroed out the card and formatted it as exFAT before running the test.

Test Read Write
Sequential 99.70 MB/s 46.13 MB/s
4K 11.40 MB/s 0.74 MB/s
4K 64 Thread 12.80 MB/s 1.03 MB/s
Access Time 0.389 ms 5.504 ms
Score 34 6
61

Benchmark – Hard Disk Sentinel

I ran three separate benchmarks with Hard Disk Sentinel’s Surface Test feature, using the read and write (both empty and random data) tests, and used the Random Seek Test to measure the card’s responsiveness after filling it with empty and random data.

Test Speed
Read 0x00 95.20 MB/s
Read Random 97.30 MB/s
Write 0x00 49.81 MB/s
Write Random 49.04 MB/s
Seek Time 0x00 0.35 ms
Seek Time Random 0.37 ms

Once again, there does not appear to be any appreciable difference between an empty (zeroed-out) or full card.

Analysis – HWiNFO64

Now that the benchmarks are out of the way, let’s take a look at the card and what it can (and can’t) do. Let’s take a look at the details of the drive…

The card shows up as a regular IDE drive in HWiNFO, and has information about its CHS (Cylinder-Head-Sector) geometries and supported I/O interface speeds. Here we can see the card supports up to UDMA 7 but is running at UDMA 6 as because it is connected to a PC IDE bus.

Now for the kicker: Does the drive identify itself as a fixed or removable disk? Cross your fingers…

NOPE! The SanDisk Extreme CompactFlash card does NOT identify as a fixed disk, but instead as a removable drive. This means that the hopes of using this as a bootable Windows disk are now out the window. [ba-dum-tssh!]

Analysis – Hard Disk Sentinel

Looking at the Overview tab in HDS, something weird is happening. It states that “the hard disk status is PERFECT” yet it has no health or performance percentages available. If I open the Information tab, I can see that the SanDisk Extreme CompactFlash card does NOT support S.M.A.R.T. health reporting. Bummer. Additionally, it appears that Windows does not like removable IDE drives that lack S.M.A.R.T. and instead report garbage data (or data mirrored from another drive in the system).

Looking further inside the Information tab, we can see the features that the memory card does support. It supports DMA, Ultra DMA, APM (advanced power management), write caching, 48-bit LBA (logical block address) addressing, IORDY (flow control), a NOP (no-operation) command, and has the CFA (CompactFlash Association) feature set.

Since the card reported that it supported APM, I tried to enable it but the card refused to accept the command.

Conclusion

Overall, I like this card quite a bit. It has fast sequential I/O and a respectable random read speed. However, this is soiled by the fact that the card is configured to show up as a removable disk, which renders the card unusable as a Windows boot drive, and the lack of S.M.A.R.T. health and temperature reporting makes me a bit uneasy as I cannot track the card’s program-erase cycle count during use.

Oh well. Looks like the hunt for a fast, fixed-disk CompactFlash card continues…
