PPS For All: Directly charging lithium-ion batteries with a USB-C PD tester

Posted on by
Reply

TL;DR – USB-C with PPS (Programmable Power Supply) technology is here, it’s cool, and now it’s usable on more than just the newest smartphones – it works on almost any Li-ion battery with the right USB-C tester. Check out the GitHub repo – it’s open-source!

As seen on Hackaday!

DISCLAIMER: Lithium-ion batteries can be dangerous if mishandled or abused! While much testing and development has resulted in a fairly stable implementation, this application is still an “off-label” use of a USB PD charger and USB-C tester, and therefore there is a risk of property damage, personal injury, or other unforeseen consequences if something goes wrong (and I will NOT be held responsible for that!).

Introduction

The USB PD (Power Delivery) standard has revolutionized how we charge our everyday electronic devices. While many new devices (such as smartphones) emphasize “fast charge” capability, it has required changes to both the device itself, as well as the adapters that power them.

Because power losses in the charging cable (or any other resistance) is directly related to the amount of current flowing through it, one can get more power for the same amount of current by increasing the voltage (this is how the AC power transmission lines that you see on the street and countryside work as well). The USB PD standard allows a device to request the adapter to increase its output voltage from 5 volts to a higher level, such as 9, 15, or 20 (and sometimes 12) volts.

An addition in the third version of the USB PD standard added optional PPS (Programmable Power Supply) support for the power adapter, which allows an adapter to output a wide range of voltages, rather than a fixed “menu” of 5, 9, 15, 20 (and sometimes 12) volts.

What is USB-C PPS charging?

PPS charging is a relatively new variation to the existing PD charging scheme. It allows the device being charged to actively communicate with the adapter and request a precise voltage (and current) level, increasing efficiency since DC-DC conversion efficiency drops when the difference in voltage between the input (the adapter) and output (the battery) is larger. With this bidirectional communication, it allows the adapter to share some of the regulation workload, and therefore move some of the heat-generating power conversion to the adapter, allowing the device’s battery to charge at a cooler temperature which improves its lifespan.

Direct Battery Charging

One step past normal PPS charging is direct charging, which completely offloads the power management to the adapter; the host device controls the charge process purely via software commands to the adapter. This is analogous to the DC fast charging method used in electric vehicles (EVs), which also perform all power regulation outside of the vehicle and its internal charge circuitry. Because the device no longer needs to perform its own DC-DC conversion, this skips a step in the power conversion “chain”, increasing efficiency and reducing the amount of heat dissipated in the host device (you can’t lose power on a conversion step if you never perform that step in the first place!). With this reduction in internally-generated heat, the battery can be charged at even faster rates than it could with previous charging schemes.

One barrier to the widespread adoption of direct charging is that it requires the device to explicitly support it, as it requires significant changes to how the “power path” is designed internally. It also requires the adapter to support the voltage and current levels required by the host.

Diagrams comparing normal versus direct charging schemes.

Diagrams comparing normal versus direct charging schemes. (click here for full-size image)

Thankfully, on the adapter side, PPS support is becoming more and more common, even though most devices on the market (at least at the time of writing) don’t support it. However, because that potential is already present, perhaps there’s a way for the electronics hobbyist to take advantage of direct charging for their own batteries…

Shizuku Platform and its Lua API

The Shizuku USB multimeter by YK-Lab, which is available in a few rebadged forms under names like YK-Lab YK001, AVHzY CT-3, Power-Z KT002, or ATORCH UT18, is a very useful USB charger testing device. It features USB-A and USB-C ports; can measure voltage, current, power; can calculate passed charge (mAh) and energy (mWh) in real time; but unlike most USB testers on the market, it is user-programmable in Lua, a lightweight programming/scripting language.

The Lua API on the tester provides a large amount of extensibility beyond the original tester’s design, and in my case I’m using its ability to “trigger” non-standard voltages from fast-charge capable power adapters as well as its colour LCD screen to act as a highly flexible direct charger – an intermediate between a USB-C PD PPS adapter and an arbitrary (Li-ion) rechargeable battery.

Introducing: DingoCharge!

The idea behind making a battery charging script came about when I looked at using bench-top adjustable power supplies to charge batteries. Since the Shizuku tester (in my case, it was the AVHzy CT-3 variant) allows me to use the PPS protocol to finely adjust the adapter’s output voltage, I tried manually varying the voltage to increase or decrease the current flowing into a battery – and it worked!

That said, constantly checking the battery’s current and voltage levels just to charge a battery gets pretty tiring, and since the Shizuku is Lua-programmable… why not make a script that automates all of this for me? Thus began a programming journey that’s been ongoing for over a year, and I’ve still got ideas to add even more functionality (as long as I don’t crash the tester by running out of memory… don’t ask me how I know).

Charge Regulation Algorithm

All lithium-ion batteries (including less-common ones like lithium-iron phosphate (LiFePO4) and lithium titanate) use what’s known as CC-CV charging; this stands for constant-voltage/constant-current. A fixed amount of current is fed into the battery until its voltage reaches a certain threshold, then the voltage is held at a fixed value until the current going into the battery drops below another, lower, threshold. Once this is reached, the current is turned off entirely and the charge process is complete.

Although the PPS specification allows a device to set a maximum current level, my own testing revealed that there was too much variation amongst all my different adapters that I could not rely on the hardware to perform the constant-current regulation with enough precision for my liking, and the voltage drop across the USB-C cable resulted in the battery’s charge current tapering off too early as the voltage at the adapter reached its programmed constant-voltage level before the battery’s own voltage had a chance to do so as well. Instead, my charge algorithm increases the requested USB PD charge voltage above the battery’s own voltage until the desired current level is within a certain deadband range.

Once the target constant-voltage level is reached, the charge algorithm switches to constant-voltage regulation, maintaining a preset voltage until the current being drawn by the battery falls below the termination threshold.

If a battery was previously overdischarged, it requires a slower “precharge” current to bring the battery’s voltage up to a level that is safe for its regular charge current.

Charge Safety Tests

Over time, I added more safety checks to ensure that the battery’s state was maintained within a safe margin for voltage, current, temperature, and also time. If a safety violation was detected during charging, the charging algorithm would automatically set its charge current to zero, effectively terminating the charge process. Additionally, if the charge process was finished but a small current flowing into the battery resulted in the battery’s voltage getting too high, the PD request voltage gets adjusted downwards to prevent an overvoltage condition from occurring.

Downstream Resistance Compensation

I also added the ability to compensate for high-resistance connections to the battery. This works by using Ohm’s Law (voltage = current * resistance) to boost the voltage thresholds in proportion to the amount of current flowing into the battery, as determined by a configured downstream (tester-to-battery) resistance. This is usually considered an advanced feature for a charging system, but since all of the charging is handled in software, it is relatively trivial to allow for compensating for lossy cabling and connectors.

Charging Test

As a real-world demonstration of the DingoCharge software, I created a test setup that charged a 600mAh/7.4V nominal battery pack (a rechargeable 9V alternative that’s built from disposable vape batteries – stay tuned for that blog post!) at a 1C (600mA) rate at 8.4V (4.2V per cell) until the current tapered off to C/10 (30mA); note that the pack I was charging was built with high-drain cells that can handle higher currents than normal, and most commercial cells are best charged at a C/5 to C/2 rate. I used a Samsung EP-TA800 USB-C adapter, capable of a maximum of 25W at full power (11V at 2.25A).

Demonstration of DingoCharge charging a 9V Li-ion replacement, using a Samsung 25W USB-C PD adapter.

Demonstration of DingoCharge charging a 9V Li-ion replacement, using a Samsung 25W USB-C PD adapter. (click here for full-size image)

Block diagram describing the DingoCharge hardware setup.

Block diagram describing the DingoCharge hardware setup. All power conversion (and associated power conversion losses) occur only in the power source, with the tester simply issuing commands to control the power going into the battery. (click here for full-size image)

Voltage/current plot of DingoCharge charging a battery at 600mA and 8.4 volts, using a Samsung EP-TA800 USB-C PD adapter.

Voltage/current plot of DingoCharge charging a battery at 600mA and 8.4 volts, using a Samsung EP-TA800 USB-C PD adapter. (click here for full-size image)

The classic CC-CV charge profile is visible when the charging current and voltage is graphed over time. The stepped nature of the current is a consequence of the PPS voltage being limited to 20mV granularity, causing jumps in current draw as each step occurs. The voltage is increased or decreased when the current or voltage being sent to the battery falls out of a certain range (in this case, 600mA and a +/-25mA deadband during constant-current charging, and 8.4V +/- 10mV during constant-voltage charging).

One contribution to the relative flatness of the constant-voltage phase is that the charging algorithm is essentially performing four-wire (also known as Kelvin) sensing from the adapter to the tester, inherently compensating for voltage drop across the USB-C cable. This is also why the current flutters a bit as it tapers off, as the voltage at the battery begins to rise above the deadband, resulting in a small amount of oscillation as the algorithm tries to maintain 4.2 +/- 0.01 volts.

Limitations

Nothing in this world is perfect, and neither is my charger implementation. In fact, trying to shoehorn a battery charger into what’s effectively a multimeter and a “wall wart” required a lot of compromises to be made.

No Power Switching

Charge termination is a bit tricky, as most implementations will just electrically disconnect the battery. However, with the tester, there is no power switching available that can be controlled through software. This is mitigated by setting the constant-current algorithm to 0 amps +/- 10 milliamps, resulting in minimal charge/discharge current as the battery voltage drops while it relaxes from a fully-charged state.

One Name, Many Variations

Another limitation is that the PPS protocol allows adapters to not necessarily support the full voltage range of 3.3 to 21 volts. Instead, there are options to support up to 5.9, 11, 16, and/or 21 volts, and at current level up to 5 amps. The large disparity of supported voltages and currents means that the DingoCharge script needs to check the programmed charge parameters against what the adapter supports; many PPS adapters only support up to 11 volts, so 3S (3 cells in series) and higher cell configurations will not work (and an error message will be displayed if that is the case).

My (Electro)chemical Romance Recharge

I designed DingoCharge only for use with lithium-ion type battery chemistries, but have been experimenting with charging other rechargeable batteries, such as lead-acid and nickel-metal hydride/Ni-MH. There has been promising results with both chemistries, but each one is not fully supported as I have not implemented proper 3-stage charging for lead-acid batteries; Ni-MH charging only works by using a low current (C/10 typical) for a fixed period of time via DingoCharge’s time limit feature, or an external temperature sensor alongside the overtemperature protection feature to stop the charge process (a very crude delta-T/change-in-temperature algorithm). Thankfully, the software-based approach of DingoCharge means I can add this functionality in an official capacity with further research and development work… as long as I get around to it 😛 .

Lua Lunacy?

Additionally, this was my first real foray into Lua programming, so I’m pretty certain I’ve made some poor stylistic and other programming choices along the way. For all I know, it could have inherited some significant syntactic defects from my other programming (language) attempts that make it an “awful” program – but hey, it’s an open-source project so if you have some pointers, feel free to help contribute on GitHub (link is in the Downloads section below)!

Conclusion

The USB PD protocol, and its adjustable PPS functionality that was introduced in the PD 3.0 specification, provides a lot of potential use for directly charging batteries since it skips the usual conversion step in a device. However, this type of charging technology was largely untapped by many devices, with only a few smartphones (as of the time of writing) supporting it.

The scriptability of some USB-C testers like the AVHzY CT-3 or Power-Z KT002 allows for a script to handle all of the intricacies of battery charging, while providing an easy-to-use yet highly flexible interface. Thanks to the DingoCharge script, any USB PD PPS adapter and supported USB tester can be used as a universal battery charger.

Downloads

The DingoCharge script can be found on my GitHub profile (https://github.com/ginbot86/DingoCharge-Shizuku), and is open-source under the MIT License. If you have a suitable USB PD PPS adapter and USB-C tester, I’d love to hear if/how well DingoCharge works for your batteries!

Advertisement

Review and analysis of XTAR 3600 mAh 18650 Li-Ion protected battery

Posted on by
5

TL;DR – Yes, the XTAR 3600 mAh protected 18650 battery meets its rated capacity! Just make sure your device can drain down to 2.5 volts.

The 18650 lithium-ion battery, named after its size (1.8 cm diameter and 6.50 cm length), has seen continuous improvements in capacity over the years. Nowadays it’s easy to get capacities in excess of 3000 mAh, with the highest capacity cells reaching and even exceeding 3500 mAh.

The XTAR 3600mAh protected 18650 lithium-ion battery, pictured with its original box.

The XTAR 3600 mAh protected 18650 lithium-ion battery, pictured with its original box.

Earlier this year, XTAR, a Chinese company specializing in batteries and battery accessories, announced the newest and highest-capacity addition to their protected 18650 lineup, boasting an impressive 3600 mAh capacity and aimed towards medium-drain applications like power banks and LED flashlights (sorry vapers, this one’s not for you!). After submitting my name for consideration, I was one of a few people selected to receive some samples for review; considering how much I’ve blogged about lithium-ion batteries on here, it only makes sense to talk even more about them!

FULL DISCLOSURE: XTAR provided these batteries to me at no charge for an independent review. They had no editorial control over this review, I have not been compensated monetarily, and all opinions expressed in this review are my own.

Introduction

XTAR’s new 3600 mAh protected 18650 comes in a discreet box, holding nothing more than the battery itself. Like all protected 18650s, the protection comes in the form of a small PCB (printed circuit board) that is stacked on the negative end of the bare 18650 cell, with a metal strap running up the cell’s body to the positive terminal, where a small “button top” is attached to improve electrical connectivity for spring-loaded battery holders.

Positive and negative terminals of the XTAR 3600mAh protected 18650 battery.

Positive and negative terminals of the XTAR 3600 mAh protected 18650 battery. Note the added length due to the button top on the left, and the protection circuit and protective plate on the right.

I was able to request an official datasheet for the battery, which I have included at the end of my blog post. My main goal with this review is to test the batteries from an objective perspective, using dedicated test equipment rather than in-application testing in devices like flashlights. If I do decide to perform such tests, I’ll add a second part to my review (stay tuned!).

Datasheet specifications

Parameter Value
Cell manufacturer (Unspecified)
Nominal voltage 3.6 V
Nominal capacity 3600 mAh
Minimum capacity 3500 mAh
Discharge cutoff voltage 2.5 V
Cycle life @ 80% capacity At least 300 times
(0.5C charge to 4.2 V, 0.03C taper; 0.5C discharge to 2.5 V)
Size 18.1~18.7 mm diameter
68.3~69.3 mm length
Weight ≤50 g
Internal AC resistance ≤45 mΩ
Standard charge CC 720 mA
CV 4.2 V
Taper 50 mA
Fast charge CC 2500 mA (0.7C)
CV 4.2 V
Taper 36 mA (0.01C)
Standard charge voltage 4.2 V
Standard discharge 720 mA CC to 2.5 V
Continuous discharge current >8.5 A
Overvoltage protection Trip 4.25~4.35 V
Recover 4.0~4.2 V
Undervoltage protection Trip 2.4~2.5 V
Recover 2.8~3.0 V
Overcurrent protection Trip 11~13 A
Working temperature Charging: 0~45 °C
Discharging -20~60 °C

Test 1: EBL TC-X Pro battery analyzer

Initial testing of the batteries was tested using my EBL TC-X Pro 4-bay battery analyzer. The test procedure for the batteries was performed as follows:

  1. Record out-of-box/initial voltage before charging
  2. Run automatic capacity test with programmed 1500 mA charge current to 4.2 V, and fixed 500 mA discharge to 2.75 V (charge -> discharge -> charge); record discharge capacity and reported internal resistance
  3. Run manual discharge test with fixed 500 mA current to 2.75 V; record discharge capacity and reported internal resistance
  4. Run manual charge with 1500 mA charge current to 3.65V/LiFePO4 mode (moderate voltage is best for long-term storage); record charge capacity
Parameter (charge current = 1.5A) Cell 1 (bay 1) Cell 2 (bay 2)
Initial voltage (V) 3.65 3.55
Capacity run 1 (mAh @ 2.75 V end of discharge) 3349 3369
Capacity run 2 (mAh @ 2.75 V end of discharge) 3334 3386
Internal resistance run 1 (mΩ) 54.9 46.9
Internal resistance run 2 (mΩ) 53.4 45.1
Storage capacity (mAh charged to 3.65 V) 1402 1494

The capacity numbers seemed a bit low to me, even for an incomplete discharge to 2.75 volts instead of 2.5 volts. I decided to continue testing with a more accurate (and calibratable) battery fuel gauge board, revealing the true capacity of this battery… and it’s as good as the manufacturer promised!

Test 2: Texas Instruments bq78z100 fuel gauge

After realizing that my dedicated battery analyzer wasn’t quite as accurate as I wanted, I decided to use a battery fuel gauge board that I had more confidence in. I had previously built a board based on the Texas Instruments bq78z100, a dedicated battery management system (BMS) on a chip, aimed at 1S and 2S battery packs. This allowed me to calibrate the voltage and current measurements against my Agilent/Keysight U1253B multimeter and therefore get the most accurate results, as I can also program the bq78z100’s autonomous protection features to provide precise control over the discharge cutoff voltage during testing.

Example of the bq78z100-based fuel gauge board being connected to the XTAR 3600mAh protected 18650 battery. (note: actual setup is different than as pictured)

XTAR 3600 mAh protected 18650 battery connected to the bq78z100-based fuel gauge board. (note: actual setup is different than as pictured)

Using this circuit, I was able to get multiple measurements of the battery’s capacity with the help of a Texas Instruments GDK (Gauge Development Kit) as a charger and adjustable load for some of the capacity tests; and an Arachnid Labs re:load 2 adjustable constant-current load, with some additional forced-air cooling for the higher discharge rates.

I suspect that if I had a more, erm, “professional” setup, I could extract even more capacity from the battery, as additional resistance between the battery and the fuel gauge board will cause a voltage drop and subsequent loss in measured capacity.

Available capacity vs. end-of-discharge voltage

This is one of the most interesting test results, in my opinion. Many 1S/”single-cell” devices can’t take full advantage of modern NMC (nickel-manganese-cobalt) cells whose end-of-discharge voltage is below 3 volts, and the following chart helps quantify how much capacity can be extracted if one stops earlier than that. One advantage of reducing the depth of discharge, however, is that it can extend the battery’s cycle life and reduce the amount of capacity loss it experiences with age. As long as you discharge all the way to 2.5 volts and at a modest rate, the XTAR 3600 mAh battery achieves its rated capacity, and then some!

Chart plotting the XTAR 3600mAh protected 18650's voltage, compared to discharge capacity and discharge rate.

XTAR 3600 mAh protected 18650’s voltage/capacity curves at various discharge rates. (click here for full-size chart)

Discharge Rate Capacity/DoD@ 3.3V
(Rel/Abs)		 Capacity/DoD @ 3.0V
(Rel/Abs)		 Capacity/DoD @ 2.75V
(Rel/Abs)		 Capacity/DoD @ 2.5V
(Rel/Abs)
C/10
(350 mA)		 2616 mAh
72.4%/72.4%		 3357 mAh
92.9%/92.9%		 3539 mAh
97.8%/97.8%		 3613 mAh
100%/100%
C/5
(720 mA)		 2555 mAh
(N/A)/70.7%		 3250 mAh
(N/A)/90.0%		 (No Data) (No Data)
C/2
(1800 mA)		 2310 mAh
67.2%/64.0%		 3076 mAh
89.4%/85.1%		 3338 mAh
97.1%/92.3%		 3438 mAh
100%/95.2%
1C
(3600 mA)		 1995 mAh
57.2%/55.2%		 2874 mAh
82.4%/79.5%		 3330 mAh
95.5%/92.2%		 3486 mAh
100%/96.5%

Note that “relative” and “absolute” percentages correspond to the 2.5 volt discharge values for each row and the C/10 rate, respectively. The curve for the C/5 discharge rate ends early, as that data was collected with my Texas Instruments GDK (Gauge Development Kit), which has a hardcoded discharge cutoff at 2.9 volts. One oddity of the 1C curve is how it actually gets slightly more capacity than the C/2 rate; I suspect this is because the internal resistance of the battery was decreasing due to cell heating, allowing the lithium ions to travel across the cell’s separator more easily. Additionally, the capacity under-reporting issue I was having with the EBL tester is more visible in this chart, since a rough extrapolation would bring the discharge curve at 500 mA around 3550 mAh, which is a fair amount higher than the measured ~3340 mAh. If I have the time to recollect some data, I’ll add it to the chart.

Thermal performance

I don’t have the equipment to test beyond a 1C discharge rate, but even at a C/2 discharge rate I noticed significant heating of the battery; nothing disconcerting but still noteworthy. At 1C, the temperature rose to just over 40 degrees Celsius (104 degrees Fahrenheit) by the end of the discharge cycle – definitely warm to the touch but not burning hot. However, I imagine that a discharge rate at 2C or even higher will result in battery temperatures exceeding 50 degrees Celsius (122 degrees Fahrenheit), hot enough to be uncomfortable to hold. Note that lithium-ion batteries should not be charged if they are warmer than 45 degrees Celsius (113 degrees Fahrenheit).

Chart plotting the XTAR 3600mAh protected 18650's temperature, compared to discharge capacity and discharge rate.

XTAR 3600 mAh protected 18650’s temperature curves at various discharge rates. (click here for full-size chart)

Chemistry analysis

After running the data taken at a C/10 discharge rate through TI’s online tool, GPCCHEM, I was able to get two chemistry IDs that would allow me to get an accurate model of the cells for use in their Impedance Track line of fuel gauges.

Chemistry ID (hex) Chemistry Description Cell match Max DoD error (%) Max Ra deviation ratio
5267 LiMn2O4 (Co,Ni)/carbon, 4.2 V Bak: N18650CP (3350 mAh) 2.3 0.27
5634 LiMn2O4 (Co,Ni)/carbon, 4.2 V NanoGraf: INR-18650-M38A (3800 mAh) 2.72 0.61

Don’t pay too much attention to the details; they are provided for informational purposes only and mainly of use for those that want to use these batteries with TI’s fuel gauge chips. The specific models listed are not a guarantee that these batteries actually are that cell model, but it does confirm that our data is otherwise trustworthy; both listed models are high-capacity cells and use a chemistry system containing nickel, manganese, and cobalt (NMC for short), and such chemistries tend to have a relatively high capacity at the expense of lower terminal voltage (3.6 V nominal, 2.5 V at end of discharge; versus the typical 3.7 V nominal and 3.0 V end of discharge).

Conclusion

After my testing, I can confidently say that XTAR’s 3600 mAh 18650 really does achieve its rated capacity. As long as your target device is capable of discharging to 2.5 volts and at a modest rate, it will be able to get the most out of this battery.

If you want to purchase this battery, you can do so from their online store: https://xtardirect.com/products/18650-3600mah-battery?VariantsId=10393

At the time of writing, XTAR is selling this battery at $11.90 USD for a single battery, or $23.80 USD for a two-pack with carrying case.

Downloads

The datasheet for the battery can be found here: https://www.dropbox.com/s/wibdm2ty6zfa7xo/XTAR%2018650%203600mAh%20Specification.pdf?dl=1

Completed: Self-discharge test of Kentli PH5 1.5V Li-ion AA (Part 6)

Posted on by
7

Looking for the teardown or how well the Kentli PH5 battery performs under load? Click the links to learn more.

It’s finally happened – the self-discharge test of the Kentli PH5 Li-ion AA battery has finally come to an end… and it only took almost 3 years!



Kentli PH5 Voltage (Jun 18, 2015 – Apr 29, 2018)
Kentli PH5 State of Charge (Jun 18, 2015 – Apr 29, 2018)

april 29 2018 stats

Kentli PH5 self-discharge test statistics

Self-Discharge Rate

I never anticipated this test would run for so long; although the PH5 did not have a manufacturer-specified self-discharge rate, marketing materials suggested that the batteries had a storage life that was “3-5 times longer than Ni-MH batteries”. Wikipedia states that after one year, normal Ni-MH batteries lose about 50% of their capacity, and low-self-discharge (LSD) Ni-MH batteries lose 15-30%.

Correlating this with the data collected from the Texas Instruments bq27621-G1 fuel gauge, the battery lost 40% of its charge within one year, placing it in between the standard and LSD Ni-MH chemistries. Using Excel’s SLOPE() function, the self-discharge rate was calculated to be 0.10108%/day.

Experimental Improvements

There is some error in State of Charge measurement when using the bq27621 fuel gauge. As it uses the Impedance Track algorithm, open-circuit voltage is used to determine a battery’s state of charge upon gauge initialization. This OCV curve is chemistry-specific, with slightly different formulations requiring different chemistry ID codes. The bq27621 has a fixed Chemistry ID of 0x1202 (LiCoO2/LCO cathode, carbon anode), but experimental data revealed a better-matched Chemistry ID of 0x3107, 0x1224 or 0x0380; the first two chemistries pointed towards a LiMnO4/LMO cathode chemistry which I was somewhat skeptical of, but did not test further.

Using another gauge with a different, programmable Chemistry ID could have led to a straighter SoC curve. This wouldn’t be too difficult to reproduce, as the battery voltage can be fed to the gauge in order to recompute the state of charge. Additionally, the bq27621 has a Terminate Voltage of 3.2 volts (the gauge considers this voltage to be the point in which it reads 0% SoC), which is higher than the battery’s protection voltage of 2.4 volts (granted, there is very little charge difference in this area of the discharge curve).

My test setup was not temperature-controlled; I live in a house without air conditioning and room temperatures can vary from 15 to 35 degrees C (59 to 95 degrees F), depending on the season. However, I doubt that this would have had too much impact on discharge rate, and this would better represent real-life scenarios where a constant temperature may not necessarily be guaranteed.

Finally, this test was performed on a new, uncycled battery. I suspect the discharge rate would be significantly higher on an aged battery that was subject to a lot of charge cycles and day-to-day wear.

Conclusion

This was the longest-running experiment I’ve ever conducted on this blog. The Kentli PH5’s self-discharge rate lasts longer than a standard Ni-MH battery, but a LSD (low-self-discharge) Ni-MH battery would still last longer, albeit with a lower terminal voltage. The battery, when new, should be expected to last almost 3 years without a charge (although there won’t be any charge left by then); it will hold about 60% of its capacity after 1 year of storage.

To download a copy of the self-discharge test data, click here.

Self-discharge test of Kentli PH5 1.5V Li-ion AA (Part 5)

Posted on by
2

It’s amazing – 894 days (and counting) have elapsed since the start of my long-term experiment, documenting the real-world self-discharge behavior of the Kentli 1.5V Li-ion AA battery… and it’s still ongoing! How have things fared so far?

Kentli PH5 Voltage (Jun 18, 2015 – November 28, 2017)
Kentli PH5 State of Charge (Jun 18, 2015 – November 28, 2017)

Surprisingly, even after spending nearly 30 months on the shelf, there is still 12% capacity left. The voltage has dropped from 4.216 to 3.692 volts according to my bq27621 Li-ion fuel gauge; the State of Charge (SoC) has dropped 50% since my last update.

november 28 2017 stats

The linear end date prediction is holding pretty steady, having changed slightly to an estimated 0% charge date somewhere in February 2018.

On that note, I’m impressed by how much attention this little battery has received, even years after my initial review. Every day I see a handful of views checking out the teardown and performance metrics, and there seems to be hardly any sign that this will change anytime soon. To everyone who stops by to check out my blog posts: thank you! 🙂

Self-discharge test of Kentli PH5 1.5V Li-ion AA (Part 4)

Posted on by
3

“It’s been a long time… How have you been?”

It’s been almost a year since I started my discharge test of the Kentli PH5 Li-ion AA battery, and the battery has lost almost 40% of its capacity due to self-discharge.

The discharge curve has gotten a lot less… linear since the last time I posted a self-discharge update. The battery is down to 62% state-of-charge, and its voltage has dropped down to 3.89 volts. Still, there’s a lot of time left until this battery reaches empty… but when?

I’m no statistician, but doing a linear extrapolation in Excel gives an approximate end date of January 2018, and the SLOPE() function in Excel gives me an average drop of 0.111%/day. Of course, this can easily change over the course of this test, but only time will tell…

HDQ Utility version 0.96 now available!

Posted on by
2

Whew, I’ve been working on this version for quite a while. With the helpful feedback of many people that have tried my software, I’ve made a large number of improvements to the software; of course, there are plenty of features that aren’t implemented yet, but are being worked on.

More information about how this utility works can be found here.

Download HDQ Utility v0.96 here: https://www.dropbox.com/s/pf0vszgfei7s8ly/HDQ%20Utility%200.96.zip?dl=0

Updates

  • (Major improvement!) Improved HDQ logging functionality (logs are now saved to a separate file instead of being overwritten).
    • Example: “HDQ Log (2015-10-26 at 19.02.50) – HDQ Utility v0.96.txt”
  • Improved HDQ communication (HDQ breaks no longer require the serial port to be opened more than once, and HDQ no-response timeouts are decreased from 0.5 to 0.3 seconds.
  • Reworded certain error messages for clarity.
    • Example: “Communication error: Cannot read byte from address 0x02 (No response from device).”
  • Renamed file ‘config.txt’ to ‘Config – COM Port.txt’ for clarity.
  • Improved state-of-health warnings by making them non-modal (they do not require the user to dismiss the message).
  • Added more notifications for unidentified and uninitialized batteries. (Uninitialized batteries are determined by a FULL ACCESS security state, with Impedance Track disabled.)
  • Fixed invalid device name and maximum load current readings for v5.02/sn27545-A4 based batteries (e.g. iPhone 6, 6+…).
  • Added time-to-full readings (for firmware older than v2.24).
  • Improved error-checking for device identification (it will display a notice that the tool may need to be restarted).
  • Updated DingoLib UI library to auto-resize window to 0.9x display resolution for improved readability on larger monitors.

To-Do

  • Create a dedicated section on my blog for the HDQ Utility.
  • Create a user’s manual describing the parameters displayed by the program (in particular, the Advanced Battery Information section).
  • Improve data logging functionality by saving logs to a subdirectory instead of the program’s root to decrease file clutter.
  • Improve error-checking for commands (retry reads if one or more bytes are not received from the device).
  • Add error statistics indicating how many communication errors occurred during data collection.
  • Improve support for older (older than v1.25) firmware.
  • Improve support for v5.02/sn27545-A4 devices (make use of advanced commands available in this firmware version).
  • Add support for restarting of data collection without having to re-execute the program.
  • Add Data Flash memory functions to allow for readout of advanced configuration, serial number, lifetime/black-box data, etc.
  • Rewrite this program in something that’s not LabWindows/CVI… also, use of a GUI rather than a non-console text UI.

Self-discharge test of Kentli PH5 1.5V Li-ion AA (Part 3)

Posted on by
4

Aw what, it’s October already? So much for having another blog post in September…
But anyway, “more months, more data!â„¢”

The voltage of the PH5 has dropped down to 4.093 volts as of today (October 1st, 2015), and its State of Charge is now 93%. There’s just enough data to guess the discharge rate of the PH5: with the currently logged data, the PH5 self discharges at approximately 0.103%/day. At this rate, the cell should last years before finally reaching zero. Looks like this will be a very, very long term test…

(At least that would give me more time to procrastinate write blog posts.)

Self-discharge test of Kentli PH5 1.5V Li-ion AA (Part 2)

Posted on by
1

After my first self-discharge analysis of the Kentli PH5 Li-ion AA battery, I have collected another month’s worth of data.

The battery’s voltage drop has been surprisingly linear. Although I didn’t get the exact day when the bq27621-G1’s State of Charge readout dropped to 99%, it is quite clear that the state of charge is dropping with a fairly steep curve now. That said, because the battery’s voltage is still far away from the ‘flat region’ of the discharge curve, it is difficult to determine when the battery will discharge itself completely at this time.

Self-discharge test of Kentli PH5 1.5V Li-ion AA (Part 1)

Posted on by
4

As an extension to my previous performance analysis of Kentli’s PH5 Li-ion AA battery, I fully charged an unused PH5 and left it on my desk to self-discharge. Every now and then, a Texas Instruments bq27621-G1 fuel gauge is hooked up to the Li-ion battery terminals (in the case of the PH5, the recessed ring around the 1.5V terminal) and the bq27621’s default settings are used to measure the voltage and state of charge.

I started this test on June 18th, 2015 and will keep taking occasional measurements until the protection IC in the PH5 shuts down.

Since the 18th, the voltage dropped from 4.216 volts down to 4.192 volts as of July 6, 2015; the bq27621’s State of Charge reading remains at 100% for the time being. The voltage drop has been fairly linear so far, but I expect it to taper off as the battery discharges to the Li-ion cell’s “flat region”, and only after that do I expect the cell’s voltage to decline more rapidly.

Performance analysis/review of Kentli PH5 Li-ion 1.5V AA battery

Posted on by
38

In my previous blog post, I tore down the Kentli PH5 battery – a Li-ion battery that has an internal 1.5-volt regulator that allows for terrific voltage stability… up to a point. In terms of data collection, so far I have collected 55+ runs of data logs (248 MB of text files!) and still do not quite have all the data I want. As for the data that I do have, I will be disseminating them with as much thoroughness as possible.

Updated (May 1, 2018):

The battery’s self-discharge rate experiment has come to its conclusion – click here to read it.

I forgot to add a diagram of my test setup – here’s a Visio diagram of the hardware used to test the battery’s performance… Click here to see the full-sized diagram.

ph5 cycle test setup diagram



Voltage vs. load current

As expected, the voltage output of the PH5 remains quite stable, up until roughly 2.1 amps where the voltage sags noticeably until the regulator goes into overcurrent protection mode.

A maximum load capacity of 2.1 amps seems to be a bit… limiting. That said, I have not done tests on the PH5’s transient load capacity, as it would require more automated control than what I currently have available.

Another issue with having such a flat discharge curve is that any device that performs fuel gauging using voltage alone will report 100% capacity, until it suddenly shuts down. This could be a big problem for digital camera users, as they will have no indication that their batteries are running low, until the device abruptly stops working. If the camera was writing an image to its memory card when the battery died, it could cause the image to be corrupted, or worse, damage the file system on the card!

Voltage vs. state-of-charge

Unless you are running the battery at a high discharge rate, the output voltage will be flat at 1.5 volts before abruptly brickwalling and dropping to zero immediately at the end of discharge. At a high load (in the case of the graph below, at 2 amps), the voltage remains flat until the very end of the discharge cycle (99% depth of discharge for my test run), where it quickly tapers off and drops to zero.

Capacity vs. load

This is the big one, and it took a lot of work to get this data, especially at low loads (48+ hours of continuous logging is just asking for Murphy’s Law to come into play). I used almost 50 discharge runs to create the graph below.

This is where things get… interesting. I was expecting the capacity to peak at low currents then taper off as the load current increases. Instead, I noticed a definite ‘hump’ in capacity around the 250 mA mark (reaching a maximum of 1700 mAh / 2550 mWh), and only after that point did I see the expected downward slope in capacity, reaching 1200 mAh (1800 mWh) at the 2 amp mark.

This data brings forth some very interesting conclusions. The PH5’s capacity is inferior to its Ni-MH counterparts (even the relatively crappy ones), and at higher discharge rates it has similar capacity to that of an alkaline at the same load, albeit with much better voltage stability than the Ni-MH or alkaline chemistries.

Other findings

Although I won’t go into too much detail for the next few points (I haven’t gotten quite enough data to be presentable), there are some other issues with the battery that I think should still be mentioned.

One issue is the amount of heat the battery gives off at high loads. At 2.1 amps, I had to use a fan to blow cool air onto the DC-DC converter just to prevent it from entering its over-temperature shutdown mode. Although the converter itself can tolerate elevated temperatures, the Li-ion cell inside will not; the uneven heating that the cell will encounter could potentially degrade its lifespan in the long run.

Another problem is efficiency. At 1 amp, the DC-DC converter is about 75% efficient, and is only 65% efficient at 2 amps. I have not tested the converter’s efficiency at lower loads yet, but I doubt it will achieve more than 85-90% efficiency.

A potential issue with this battery is self-discharge. The buck converter remains active all the time, unless the converter or the Li-ion protection circuit enters a protective shutdown state. I have not had a chance to fully charge an unmodified battery in order to perform a long-term self-discharge test, but I will create another blog post for that, if/when the time comes. Update (May 3, 2018): See the top of the page for the link to the self-discharge test results.

Conclusion

Overall, I’m on the fence when it comes to this battery. Its innovative design does provide unparalleled voltage stability, but its low capacity even at moderate discharge rates dampens the fun significantly. Additionally, the 2.1 amp discharge limit could prove to be a bottleneck for some high-drain applications; this, coupled with the cell’s tendency to shut down abruptly when the internal cell runs empty could potentially cause file system corruption for digital cameras that have not been designed to handle such sudden power interruptions.

Also, the batteries are very costly. At about $10 per cell, you may want to think twice about replacing all your current disposable and rechargeable batteries with these newfangled Li-ion ones. Don’t forget the charger either, as a special charger is required to make contact with a recessed terminal on the top of the battery.

Overall, this cell is… interesting. Just don’t expect a miracle in a steel can.

Pros:

  • Excellent voltage stability, even at high loads
  • Li-ion chemistry allows for a very lightweight cell, even with the addition of a DC-DC converter
  • High output voltage could allow some devices to run more efficiently

Cons:

  • Low capacity – provides a mere 1200 mAh (1800 mWh) @ 2 amps, and up to 1700 mAh (2550 mWh) @ 250 mA (even alkaline batteries can do better than this)
  • Abrupt shutdown when the battery is overloaded, overheated, or over-discharged
  • Runs hot at high loads (and therefore is fairly inefficient)
  • 1.5 MHz converter and unshielded inductor can cause excessive EMI (electromagnetic interference) in sensitive devices
  • Expensive! Costs approximately $10/cell
  • Requires proprietary charger

Bottom Line: This is a niche product and should not be considered a universal replacement for alkaline or Ni-MH AA batteries.

Quick Review: Littelfuse Smart Glow automotive fuse

Posted on by
2

2015-05-09 16.29.34It Glows when it Blowsâ„¢! [add obligatory Michael Scott line here]

(I’m sorry. I couldn’t help myself.)

Okay, now that the lowbrow humor has been dealt with, I had to replace a car fuse because of a shorted 12-volt power socket. Luckily, I was able to replace the fuse without the circuit blowing again; however, I had used the only spare fuse in the fuse box and needed to buy some more in case the fault was to recur. Browsing my local Canadian Tire, I stumbled upon a pack of fuses that allowed for a visual check for blown fuses by simply turning on the ignition: the Littelfuse Smart Glow fuse. A 36-pack of these fuses cost about $35 Canadian, making them a bit pricier than their non-illuminated counterparts.

Construction

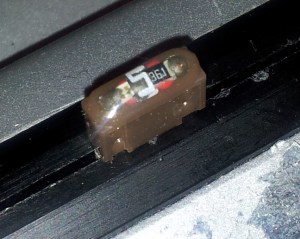

Closeup of fuse, LED and resistor

Closeup of fuse, LED and resistor

The Smart Glow fuse is comprised of three main components: the actual fuse (which is really just a regular automotive fuse), a 360-ohm resistor, and a dual red LED package with the diodes in inverse parallel to allow for the fuse to glow regardless of orientation. The LEDs and resistors are affixed to the fuse body using various epoxies: an opaque red epoxy to glue the components down, a conductive silver-filled epoxy to provide an electrical connection without soldering, and a clear epoxy to protect the components from damage; the fuse amperage is re-printed on top of the protective epoxy coating since the resistor and LED obscure the original fuse’s markings.

Schematic of Littelfuse Smart Glow fuse

Schematic of Littelfuse Smart Glow fuse

Performance

Simply put, this acts like any other automotive fuse would. The only difference is that the LED will illuminate if the fuse is blown, and sufficient load is still present in the circuit to provide enough current for the LED to act as a fault indicator.

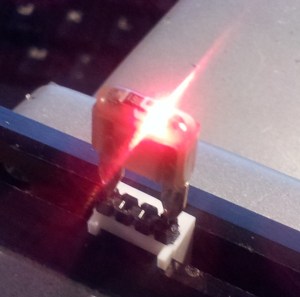

Fuse blown and LED indicator lit with 5 volts

Fuse blown and LED indicator lit with 5 volts

When testing the fuse’s brightness, I found it to be quite noticeable at 5 volts and almost blindingly bright when run at 14.4 volts (the approximate charging voltage for a 12-volt car battery).

Simulation of LED indicator

Simulation of LED indicator

Running this circuit through a simulator, the LED has almost 35 mA of current running through it. Given how LEDs are typically rated for a maximum of 20 mA, this LED is not going to last long; that said, it shouldn’t need to run for a long time as the LED’s only purpose is to notify the user that the fuse needs to be replaced (and at that point the fuse and its indicator will be disposed of anyway).

Conclusion

Yes, it glows when it blows; I have nothing more to add.

(The same could be said for Rudolph the Red-Nosed Reindeer, but he’s a non-electronic entity and is therefore outside the scope of this blog. :P)

So, about that Kentli battery…

Posted on by
7

It’s been a while since I’ve posted about the Kentli PH5 battery, which is a Li-ion cell with an integrated 1.5-volt regulator, wrapped up in an AA-sized package. Although I haven’t written much about its performance yet, that doesn’t mean I haven’t been doing work on it. In fact, I’m sure I have never put so much work into a single blog post before!

The full analysis of the battery’s performance is not fully complete, but I’ll reveal some details of my test setup and what I’m currently working on:

Analysis

I’m doing a much more thorough analysis of this battery than I have done with any other one on this blog. I have created a second bq27541 fuel gauge board, but with the explicit goal of measuring the voltage, current, passed charge (mAh) and temperature of a given DC-DC converter. This way, I can measure the input and output of the DC-DC converter simultaneously, greatly enhancing the data I can collect.

These are the data points/attributes I am currently collecting:

  • Battery voltage sag at high load currents
  • Battery capacity over different load currents (it’s not constant!)
  • DC-DC efficiency, both at different load currents but also over a single discharge cycle
  • Temperature rise of the DC-DC converter at different loads, and also over a single discharge cycle
  • Changes in battery capacity and internal resistance over many charge cycles

I want to be as thorough as possible with my measurements, mostly because nobody else has done a detailed performance review of this rather unusual battery, but also partially because I want to challenge myself and see how much of a “real engineer” I can be (#JustHobbyistThings). 😛

Teardown of Kentli PH5 1.5 V Li-Ion AA battery

Posted on by
44

June 17, 2015 – Performance analysis/review HERE!

After having an entire month of dormancy on this blog, I’m finally beginning to cross off the blog posts on my “Pending” list.

Last year, I made a blog post talking about Kentli’s lithium-ion based AA battery that has an internal 1.5 volt regulator. The first order never arrived, and the second one had arrived a few months ago but I never got to actually taking one of the cells apart. That changes today.

Cell overview

The battery itself looks like a regular AA battery, except for the top positive terminal. There’s the familiar ‘nub’ that constitutes the 1.5 volt output, but also has a recessed ring around it that provides a direct connection to the Li-ion cell’s positive connection for charging.



After peeling the label, we are met with a plain steel case, save for the end cap that appears to be laser spot-welded. Wanting to take apart the cell with minimal risk of shorting something out inside, I used a small pipe cutter to gently break apart the welded seam. Two revolutions and a satisfying pop sound later, the battery’s guts are revealed.

Battery internals

The PCB that holds the 1.5 volt regulator is inside the end cap, with the rest made up of the Li-ion cell itself. Curiously enough, the cell inside is labeled “PE13430 14F16 2.66wh” which is interesting in more than one way. First of all, the rated energy content of the cell is less than what’s on the outside label (2.66 watt-hours versus 2.8), and the cell inside is actually a Li-ion polymer (sometimes called a “Li-Po” cell) type; I was expecting a standard cylindrical cell inside. Unfortunately, my Google-fu was unable to pull up any data on the cell. I might attempt to do a chemistry identification cycle on the cell and see if TI’s battery database can bring something up.

Battery circuitry

The end cap’s PCB uses a Xysemi XM5232 2.5 A, 1.5 MHz synchronous buck converter to provide the 1.5 volt output. According to the datasheet, it is a fully integrated converter with all the power semiconductor components residing on the chip itself. The converter is rated for 2.5-5.5 volt operation, well within the range of a Li-ion cell. Additionally, it has a rated Iq (quiescent/no-load current) of only 20 microamps. The buck converter’s 2.2 microhenry inductor is magnetically unshielded which may cause some increased EMI (electromagnetic interference) emissions, but I don’t have the equipment to test this.

I was looking around for the battery’s protection circuit, and found it on the flex PCB that surrounds the Li-ion cell. It uses a Xysemi XB6366A protection circuit which, like the buck converter, is a fully-integrated device; there are no external protection MOSFETs for disconnecting the cell from the rest of the circuit.

Performance analysis

December 14, 2015 – After extensive and detailed analysis (148 MB of text files!), I’ve analyzed the battery’s voltage and output capacity, which can be viewed HERE (lots of pretty graphs; check it out!).

The data doesn’t stop there. It took almost three years to track the cell’s self-discharge, but the data is finally in. The final report is available here, but previous installments are available here (Part 1), here (Part 2), here (Part 3), here (Part 4) and here (Part 5).

(Day 3 and 4 of 4) Mini-Ramble: Dallas! TI! Batteries!

Posted on by
Reply

Oh wow, already a week since the event finished; I need to get posts written up more often!

Anyway, the last 2 days of the event were pretty much information seminars with three separate ‘tracks’ with one of them being all about fuel gauges (you can guess which one I went to 🙂 ). They discussed the reasons that fuel gauging is so important (and why “just measure the voltage” usually isn’t good enough), and also explained why your battery life just plummets after a few hundred cycles or 20% wear.

One of the main fuel gauge guys at TI gave me an evaluation board for their latest-and-greatest fuel gauge, the bq40z50. This gauge is able to handle 1-4 cells in series, which means that you can now pack a laptop battery’s smarts into a battery meant for a smartphone or tablet.

I’d post more but these few posts were “Mini-Rambles” after all. I may post a few pictures later on.

(Day 2 of 4) Mini-Ramble: Dallas! TI! Batteries!

Posted on by
Reply

Today was the first day of the actual Texas Instruments Battery Management Systems event. To my surprise, a couple hundred of people showed up from TI employees, a lot of customers (representatives from various companies like Bose, Google, and many others), and me as well. 🙂

The first day was a basic but still detailed introduction to the inner workings of Li-Ion technology as well as its limitations, failure modes (the gas coming from a Li-Po [lithium-ion polymer] cell contains carbon monoxide, hydrogen and a bunch of other gases), with this leading towards battery fuel gauges and why just measuring the voltage is not enough to accurately determine how full a battery is.

The day ended with a lab showcasing TI’s new Gauge Development Kit (GDK), which, in layman’s terms, is a “battery lab on a board”. It includes PC communication hardware, an adjustable charger, adjustable load and an on-board fuel gauge (but it’s set to use an external fuel gauge by default). I even got a chance to talk the TI battery management team, and even had a dinner with a few key TI guys including the one who made THE design for the GDK.

(Day 1 of 4) Mini-Ramble: Dallas! TI! Batteries!

Posted on by
Reply

Woohoo, travel time! Today marks the first day in Dallas attending Texas Instruments’ Battery Management Systems deep-dive seminar. Okay, technically it doesn’t start until tomorrow, but that doesn’t mean today was any less exciting.

The flight from Calgary to Dallas wasn’t too eventful, besides a controller fault that required going back to the terminal to resolve, but trying to grab a SIM card to put in my phone was a whole other ordeal. Fry’s carries the card but doesn’t carry the refill PINs, and my Canadian credit card would not work both online and on the phone; it was only when I went to Best Buy to purchase a refill card with cash that I was finally able to get cellular phone and data access.

I was also given a tour of the main TI facility, and boy it is HUGE! As much as I would have loved to share images, I signed an agreement explicitly stating I cannot do so. However, I was able to see a bunch of the lab rooms, offices and demo stands showcasing various TI technologies at work, such as the ARM processors in the Nest thermostat, the DLP chips in pocket projectors, and so on. I even got to see many of the people in the TI Battery Management team in person, but because of the seminar running from Tuesday to Thursday, they were visibly too busy with work to have a chat.

Tomorrow marks the first instalment of the Battery Management Deep-Dive Training sessions. There is preliminary word that I may have an opportunity to speak in public for a couple minutes about the TI forums and why I’m here.

Looking inside a (fake) iPhone 5S battery

Posted on by
18

Considering how popular the iPhone is, there’s always going to be some counterfeits out there. I’ve been out buying various iPhone batteries to build a database of each generation’s characteristics, but one model has eluded me so far: the iPhone 5S. The iPhone 5C’s battery that I bought appears to be genuine (but with its own issues), but none of the iPhone 5S batteries I’ve bought so far (4 of them at the time of writing this blog post) were genuine. All of these fakes look like a genuine battery at first glance, but all of them share a few common traits.

Battery teardown

The fake battery sports the usual iPhone battery information, complete with some dot-matrix printed data and a data-matrix barcode. It’s labeled with a capacity of 1560 mAh and 3.8 volts nominal voltage.

Comparison between real and fake iPhone 5S battery

Comparison between real and fake iPhone 5S battery

The connector itself has two points for soldering the connector to provide durability. However, with the fake batteries, they are not soldered down. The two spots on the ends of the connectors are dark with a small point visible inside it (that point is the reinforcement pin on the connector). If this connector is installed in an iPhone, it will probably not come out without either damaging the battery’s connector, or worse, leave the plastic connector piece inside the phone, requiring tweezers to remove.

Connector lifted off with a hobby knife

Connector lifted off with a hobby knife

iPhone 5S and 5C battery pinout

iPhone 5S and 5C battery pinout

Removing the black protective tape reveals an iPhone 4 battery fuel gauge board. The connector is soldered to this board, with four solder points visible.

iPhone 4 battery PCB with soldered-on flat flex connector

iPhone 4 battery PCB with soldered-on flat flex connector

Pulling out the PCB  reveals another characteristic of these fake batteries: the positive terminal is cut short, with another metal section being clumsily spot-welded to the stub on the cell.

Note how the battery tab is poorly welded to the PCB.

Note how the battery tab is poorly welded to the PCB.

Battery fuel gauge data

The battery fuel gauge requires proper programming to accurately indicate the battery’s charge status. Because of this, each iPhone battery generation has its own specific configuration.

The fake iPhone battery retains the programming for the iPhone 4’s battery, which is a designed capacity of 1420 mAh, using a bq27541 fuel gauge running version 1.25 firmware. The data inside it is often that of a used/recycled battery as well.

This data can be (partially) read out directly from the iPhone with a tool such as iBackupBot, but more data can be read if the battery is read with another tool. I have the EV2400 from Texas Instruments to read this out on a PC, but this data can be read out with a USB-to-TTL serial port, a logic gate (a logic inverter) and a small MOSFET transistor.

I created a small tool that uses this circuit to interface with the fuel gauge and read out its data. Check it out here.

Using my tool, this is the report for one of these fake batteries. Note how it is identified as an iPhone 4 battery. Don’t be fooled by the calculated state of health. It’s not accurate for this battery as the fuel gauge still thinks it’s still inside an iPhone 4 battery pack.


**** START OF HDQ BATTERY LOG REPORT ****
HDQ Gas Gauge Readout Tool version 0.9 by Jason Gin
Date: 9/30/2014
Time: 0:52:24
Serial port: COM26

Battery Identification
========================
DEVICE_TYPE = 0x0541, FW_VERSION = 0x0125, DESIGN_CAPACITY = 1420 mAh
Battery's configuration matches that of a standard iPhone 4 battery.

Basic Battery Information
===========================
Device = bq27541 v.1.25, hardware rev. 0x00B5, data-flash rev. 0x0000
Voltage = 3804 mV
Current = 0 mA
Power = 0 mW
State of charge = 45%
Reported state of health = 0%
Calculated state of health = 99.3%
Cycle count = 14 times
Time to empty = N/A (not discharging)
Temperature = 27.9 °C (80.3 °F) (3009 raw)
Designed capacity = 1420 mAh
Heavy load capacity = 628/1410 mAh
Light load capacity = 673/1455 mAh

Advanced Battery Information
==============================
Capacity discharged = 0 mAh
Depth of discharge at last OCV update = ~778 mAh (8768 raw)
Maximum load current = -200 mA
Impedance Track chemistry ID = 0x0163
Reset count = 11 times

Flags = 0x0180
Flag interpretation:
* Fast charging allowed
* Good OCV measurement taken
* Not discharging

Control Status = 0x6219
Control Status interpretation:
* SEALED security state
* SLEEP power mode
* Constant-power gauging
* Qmax update voltage NOT OK (Or in relax mode)
* Impedance Track enabled

Pack Configuration = 0x8931
Pack Configuration interpretation:
* No-load reserve capacity compensation enabled
* IWAKE, RSNS1, RSNS0 = 0x1
* SLEEP mode enabled
* Remaining Capacity is forced to Full Charge Capacity at end of charge
* Temperature sensor: External thermistor

Device name length = 7 bytes
Device name: bq27541

**** END OF HDQ BATTERY LOG REPORT ****

Reading out HDQ-equipped battery fuel gauges with a serial port

Posted on by
78

Battery fuel gauges are the unsung hero of the battery world. There’s more to it than just measuring the voltage on the battery terminals,. These little chips are microcontrollers (tiny computers, essentially) that sit inside the battery pack and keep tabs on the battery’s performance for the life of that battery pack.

Texas Instruments makes battery fuel gauges that are small enough to fit in the circuitry of a cell phone, and one of the most common ones that uses this technology are iPhone batteries. These batteries use a single-wire interface called HDQ (which stands for High-Speed Data Queue). It may sound similar to Dallas Semiconductors’ 1-Wire protocol, but the two are completely different and incompatible with each other.

Protocol details

The HDQ protocol can be emulated with a serial port and a little bit of external circuitry. The protocol can be emulated with a serial port at 57600 baud with 8 data bits, no parity bit and 2 stop bits. Because this is a bi-directional bus, an open-drain configuration is needed. Most TTL serial ports are not open-drain, so some circuitry is required to do this. TI’s application note suggests using a CMOS inverter and an N-channel MOSFET along with a 1 kOhm pull-up resistor, but this can be cut down with a 74HC07 open-drain buffer and pull-up resistor.

[EDIT: June 13, 2015 – Corrected schematic]

The HDQ protocol uses a short pulse to indicate a logic 1, with a longer pulse to indicate a logic 0. The data is sent LSB (least significant byte) first, with a 7-bit address and an eighth bit to indicate if the operation is a read or write (0 is read, 1 is write). If it is a read operation, the fuel gauge will respond with one byte of data. As you might think, this is a very slow means of communication; the typical bus speed is 5-7 kilobits per second, but the actual usable throughput will be less than this.

The hack in this is that the bit timing can be made by sending a specially crafted UART byte that meets the timing specifications. Each bit takes up one byte of UART buffer memory, with 24 bytes being enough to perform an HDQ read (the first 8 bytes are echoed back to the PC and need to be ignored by the software). TI’s application note goes into this with a bit more detail.

Windows HDQ utility

HDQ utility icon, in all its pixelated glory.

HDQ utility icon, in all its pixelated glory.

I have written a small Windows program that will read out the battery’s main data, identify as a certain iPhone battery model (most iPhone batteries are supported), and save a copy of this data to a text file for safekeeping. This program requires the National Instruments LabWindows/CVI Runtime library to run, since I whipped this program up with the first available IDE on my college PC.

fdd82eef8d

Screenshot of HDQ Utility version 0.96

The source code is not yet available (translation: I’m too ashamed of my programming skills to share it with others); however, a Windows executable is available for download below.

You will need to download the National Instruments LabWindows/CVI Runtime to run this program.

Current version (0.96): https://www.dropbox.com/s/pf0vszgfei7s8ly/HDQ%20Utility%200.96.zip?dl=0

Version 0.95: https://www.dropbox.com/s/7xdurbh9qibdftl/HDQ%20Utility%200.95.zip?dl=0
Version 0.9: https://www.dropbox.com/s/cd3esa5us6elfgr/HDQ%20Utility.zip?dl=0

Contributions are always accepted! Email me if you would like to send in a battery for me to analyze, or you can buy me a coffee through PayPal:


[EDIT – July 28, 2016] Welp, looks like the PayPal button’s broken (or was it never working to begin with…?). If you’d like to send anything to me, just give me a shout at ginbot86@gmail.com!

[EDIT – August 2, 2016] Whoops, looks like I never had the button working in the first place. Hopefully it works this time.



So Phone Me Maybe: A list of iPhone/iPad batteries with gas gauge functionality

Posted on by
43

Looking for my HDQ Utility to read out your own batteries? Click here!

UPDATE: Turns out the iPhone 3G and 3GS do have gas gauges! I will add them to my list as I find out more about them.

Each iPhone generation since the iPhone 4 iPhone 3G uses a TI gas gauge and uses the HDQ bus (iOS refers to this as the SWI [single-wire interface]) to communicate with the outside world. For more information about the HDQ protocol, click here.

I’ve noticed that many of the iPhone 5S and 5C batteries that can be purchased online are reusing iPhone 4 circuits, which will cause a significant decrease in gauge accuracy (proper parameters need to be programmed into the gas gauge, and that information is chemistry dependent), and the protection circuits in the iPhone 4 battery PCB will kick into overvoltage protection mode at 4.25 volts, less than the 4.3 volts that the iPhone 5 (and newer) batteries need to charge fully.

Because I have been unable to find a list of information of each battery generation, I’m making one myself. Because nobody else has dug this deep into the fuel gauges that the iPhone uses, I have to get this information experimentally (that is, by buying various batteries from online shops; the iPhone 5S battery has been very difficult to get, besides the fake ones I mentioned earlier).

So far I’m in need of an iPhone 3G (not the 3GS) battery, as well as all iPad batteries (or, if you have my program on hand, what model the battery is intended for, the fuel gauge device (eg. bq27541, bq27545), firmware version and designed capacity.

Model Gas Gauge Firmware Designed Capacity Default Unseal Key? Comments
iPhone 3G bq27541 ? ? Yes (0x36720414) Need to acquire one of these.
iPhone 3GS bq27541 1.17 1200 mAh Yes (0x36720414) Limited feature set. My utility will throw “No response” errors when reading this battery.
iPhone 4 bq27541 1.25 1420 mAh Yes (0x36720414)
iPhone 4S bq27541 1.35 1430 mAh Yes (0x36720414)
iPhone 5 bq27545 3.10 1430 mAh No (0x52695035) Many thanks to Yann B. for finding the unseal key!
iPhone 5S bq27545 3.10 1550 mAh No (0x84966864)
iPhone 5C bq27545 3.10 1500 mAh No (0x84966864)
iPhone 6 sn27545-A4 (note 4) 5.02 1751 mAh No (0x65441236)
iPhone 6 Plus sn27545-A4 (note 4) 5.02 2855 mAh No (0x18794977)
iPhone 6S sn27546-A5 (note 5) 6.01 1690 mAh No (0x90375994)
iPhone 6S Plus sn27546-A5 (note 5) 6.01 2725 mAh No (0x11022669)
iPhone SE Unrecognized (note 6, 7) (A1141/0x1141) 1.03 1560 mAh No (unknown) (See note 6)
Apple Watch (38mm) sn27545-A4 5.02 235 mAh No (0x09130978)
Apple Watch (42mm) sn27545-A4 5.02 245 mAh No (unknown) If anyone has one that reads “FULL ACCESS” in my program, please send it to me! 🙂
iPad (3rd gen) bq27541 1.35 11560 mAh Yes (0x36720414)

Notes:

  1. All known iPhone battery models use custom firmware, so not all of the features that the mainstream gas gauge models use are available. For example, none of these gauges will calculate the battery’s State of Health percentage (it is basically the percentage of the battery’s full charge capacity (it degrades with use) versus its designed capacity.
  2. The iPhone 5C’s battery label indicates a designed capacity of 1510 mAh, but the battery I’ve received indicates a capacity of 1550 mAh. As I have only been able to get one of these batteries that seem to be genuine, I will need to get more batteries of this type to confirm that this information is correct.
  3. The iPhone 5’s battery label indicates a designed capacity of 1440 mAh, but the fuel gauge reports 1430 mAh. The 5S battery reports 1550 mAh, but is labeled 1560 mAh. The 5C reports 1500 mAh, but is labeled 1510 mAh.
  4. The iPhone 6 and 6 Plus use a special firmware that is identified in TI’s battery software (except the very latest releases where such data was removed), and it has a very extensive feature set, and a lot of data logging features.
  5. The iPhone 6S/6S Plus use a firmware version similar to the iPhone 6/6 Plus, but with a newer chip and some features trimmed out. I’m reasonably confident that the chip is an sn27546-A5 but have no idea if it’s the official part designator.
  6. The iPhone SE battery seems to have a unique custom chip, but has gone back to a DFN-based package (similar to bq27541) rather than a BGA like the bq27545/546. It is marked “A1141” and does not respond to my HDQ adapter, only the official TI EV2300/EV2400. I have only one in my possession, so I am not 100% sure whether this is true for this series of batteries.
  7. Come to think of it, I might have been ripped off with the battery I received, and it could very well be that I just have a counterfeit that uses a non-TI gauge.

An Easy Hook-Up: Creating breakout Power/HDQ breakout boards for iPhone smart batteries

Posted on by
6

Now that I’ve been amassing a greater and greater arsenal of iPhone batteries, it’s gotten to the point that it makes most sense to create a connector board that can bring out the Pack+/Pack- pins alongside the HDQ data pin so I can view the gauge’s status in GaugeStudio.

Why use iPhone batteries in DIY projects?

The benefit of using iPhone batteries (note they must be for the iPhone 4 or newer; older ones will lack the fuel gauge) in microcontroller-based projects, is that the fuel gauge allows the microcontroller’s program to read out its current battery level, power consumption, capacity and time-to-empty; you also get the usual built-in protection circuit to safeguard against short-circuits, overcharge/overdischarge and overcurrents.

Additionally, iPhone replacement batteries are easy to find online or in cell phone repair shops, making them cheap and plentiful.

What is this “HDQ” that I keep talking about?

HDQ is a communication bus originally made by Benchmarq (now a part of TI). It stands for “High-Speed Data Queue”, and is a serial bus that transmits data over a single wire. This, however, is not to be confused  with Dallas Semiconductor’s 1-Wire protocol. The basic idea is the same but they are completely incompatible with each other.

Board construction

The board was made up of an iPhone surface-mount connector, a 4-pin connector for HDQ data transfer, a 2-pin male header, and a 2-terminal screw terminal. As with many of my prototype boards, wiring of the board is done with thin, flat solar cell tabbing wire. It’s flat, pre-tinned, and can handle high currents easily.

The benefits of this sort of board is that it allows:

  • Easy, removable connections to the battery; no need to solder to the battery terminals directly
  • Access to the HDQ data pins and power terminals
  • Real-time monitoring of battery State-of-Charge (%), current (mA), voltage (mV), capacity (mAh) and also the remaining time-to-empty (minutes).
  • Adaptability for different connectors (either by making a separate board for that connector or by creating a single “universal” board)
  • HDQ protocol can be used by a microcontroller via either bit-banging the protocol, or using an on-chip UART. (subject to a separate post in the future)

Although I could have created one large breakout with all the available connectors populated, I wanted to be able to use multiple batteries at once for powering different devices. Additionally, the HDQ bus has no support for addressing multiple devices.

The iPhone 4, 4S and 5 batteries have an additional NTC thermistor pin, but I have left them disconnected since I can read out the battery temperature over HDQ anyways.

Safety

Keep in mind that not all Li-Ion batteries have the same charging voltage. The iPhone 4 and 4S batteries use a 3.7 volt cell, charging at 4.2 volts; but the iPhone 5, 5S and 5C batteries are 3.8 volts, charging at 4.3 volts. 4.3 volt cells can charge at 4.2 volts with a capacity reduction of 5-10%, but 4.2 volt cells must not be hooked up to a 4.3 volt charger. There is overcharge protection built into the battery but it should not be relied upon for regular charging. Apart from the usual risk of the battery catching fire (or even just puffing up like a balloon), you also permanently decrease the battery’s capacity and dramatically increase its internal resistance, essentially crippling the battery for life.
