It’s finally happened – the self-discharge test of the Kentli PH5 Li-ion AA battery has finally come to an end… and it only took almost 3 years!
It’s amazing – 894 days (and counting) have elapsed since the start of my long-term experiment, documenting the real-world self-discharge behavior of the Kentli 1.5V Li-ion AA battery… and it’s still ongoing! How have things fared so far?
Surprisingly, even after spending nearly 30 months on the shelf, there is still 12% capacity left. The voltage has dropped from 4.216 to 3.692 volts according to my bq27621 Li-ion fuel gauge; the State of Charge (SoC) has dropped 50% since my last update.
The linear end date prediction is holding pretty steady, having changed slightly to an estimated 0% charge date somewhere in February 2018.
On that note, I’m impressed by how much attention this little battery has received, even years after my initial review. Every day I see a handful of views checking out the teardown and performance metrics, and there seems to be hardly any sign that this will change anytime soon. To everyone who stops by to check out my blog posts: thank you! 🙂
It’s been almost a year since I started my discharge test of the Kentli PH5 Li-ion AA battery, and the battery has lost almost 40% of its capacity due to self-discharge.
The discharge curve has gotten a lot less… linear since the last time I posted a self-discharge update. The battery is down to 62% state-of-charge, and its voltage has dropped down to 3.89 volts. Still, there’s a lot of time left until this battery reaches empty… but when?
I’m no statistician, but doing a linear extrapolation in Excel gives an approximate end date of January 2018, and the SLOPE() function in Excel gives me an average drop of 0.111%/day. Of course, this can easily change over the course of this test, but only time will tell…
Aw what, it’s October already? So much for having another blog post in September…
But anyway, “more months, more data!™”
The voltage of the PH5 has dropped down to 4.093 volts as of today (October 1st, 2015), and its State of Charge is now 93%. There’s just enough data to guess the discharge rate of the PH5: with the currently logged data, the PH5 self discharges at approximately 0.103%/day. At this rate, the cell should last years before finally reaching zero. Looks like this will be a very, very long term test…
After my first self-discharge analysis of the Kentli PH5 Li-ion AA battery, I have collected another month’s worth of data.
The battery’s voltage drop has been surprisingly linear. Although I didn’t get the exact day when the bq27621-G1’s State of Charge readout dropped to 99%, it is quite clear that the state of charge is dropping with a fairly steep curve now. That said, because the battery’s voltage is still far away from the ‘flat region’ of the discharge curve, it is difficult to determine when the battery will discharge itself completely at this time.
As an extension to my previous performance analysis of Kentli’s PH5 Li-ion AA battery, I fully charged an unused PH5 and left it on my desk to self-discharge. Every now and then, a Texas Instruments bq27621-G1 fuel gauge is hooked up to the Li-ion battery terminals (in the case of the PH5, the recessed ring around the 1.5V terminal) and the bq27621’s default settings are used to measure the voltage and state of charge.
I started this test on June 18th, 2015 and will keep taking occasional measurements until the protection IC in the PH5 shuts down.
Since the 18th, the voltage dropped from 4.216 volts down to 4.192 volts as of July 6, 2015; the bq27621’s State of Charge reading remains at 100% for the time being. The voltage drop has been fairly linear so far, but I expect it to taper off as the battery discharges to the Li-ion cell’s “flat region”, and only after that do I expect the cell’s voltage to decline more rapidly.
In my previous blog post, I tore down the Kentli PH5 battery – a Li-ion battery that has an internal 1.5-volt regulator that allows for terrific voltage stability… up to a point. In terms of data collection, so far I have collected 55+ runs of data logs (248 MB of text files!) and still do not quite have all the data I want. As for the data that I do have, I will be disseminating them with as much thoroughness as possible.
Updated (May 1, 2018):
The battery’s self-discharge rate experiment has come to its conclusion – click here to read it.
I forgot to add a diagram of my test setup – here’s a Visio diagram of the hardware used to test the battery’s performance… Click here to see the full-sized diagram.
Voltage vs. load current
As expected, the voltage output of the PH5 remains quite stable, up until roughly 2.1 amps where the voltage sags noticeably until the regulator goes into overcurrent protection mode.
A maximum load capacity of 2.1 amps seems to be a bit… limiting. That said, I have not done tests on the PH5’s transient load capacity, as it would require more automated control than what I currently have available.
Another issue with having such a flat discharge curve is that any device that performs fuel gauging using voltage alone will report 100% capacity, until it suddenly shuts down. This could be a big problem for digital camera users, as they will have no indication that their batteries are running low, until the device abruptly stops working. If the camera was writing an image to its memory card when the battery died, it could cause the image to be corrupted, or worse, damage the file system on the card!
Voltage vs. state-of-charge
Unless you are running the battery at a high discharge rate, the output voltage will be flat at 1.5 volts before abruptly brickwalling and dropping to zero immediately at the end of discharge. At a high load (in the case of the graph below, at 2 amps), the voltage remains flat until the very end of the discharge cycle (99% depth of discharge for my test run), where it quickly tapers off and drops to zero.
Capacity vs. load
This is the big one, and it took a lot of work to get this data, especially at low loads (48+ hours of continuous logging is just asking for Murphy’s Law to come into play). I used almost 50 discharge runs to create the graph below.
This is where things get… interesting. I was expecting the capacity to peak at low currents then taper off as the load current increases. Instead, I noticed a definite ‘hump’ in capacity around the 250 mA mark (reaching a maximum of 1700 mAh / 2550 mWh), and only after that point did I see the expected downward slope in capacity, reaching 1200 mAh (1800 mWh) at the 2 amp mark.
This data brings forth some very interesting conclusions. The PH5’s capacity is inferior to its Ni-MH counterparts (even the relatively crappy ones), and at higher discharge rates it has similar capacity to that of an alkaline at the same load, albeit with much better voltage stability than the Ni-MH or alkaline chemistries.
Although I won’t go into too much detail for the next few points (I haven’t gotten quite enough data to be presentable), there are some other issues with the battery that I think should still be mentioned.
One issue is the amount of heat the battery gives off at high loads. At 2.1 amps, I had to use a fan to blow cool air onto the DC-DC converter just to prevent it from entering its over-temperature shutdown mode. Although the converter itself can tolerate elevated temperatures, the Li-ion cell inside will not; the uneven heating that the cell will encounter could potentially degrade its lifespan in the long run.
Another problem is efficiency. At 1 amp, the DC-DC converter is about 75% efficient, and is only 65% efficient at 2 amps. I have not tested the converter’s efficiency at lower loads yet, but I doubt it will achieve more than 85-90% efficiency.
A potential issue with this battery is self-discharge. The buck converter remains active all the time, unless the converter or the Li-ion protection circuit enters a protective shutdown state.
I have not had a chance to fully charge an unmodified battery in order to perform a long-term self-discharge test, but I will create another blog post for that, if/when the time comes. Update (May 3, 2018): See the top of the page for the link to the self-discharge test results.
Overall, I’m on the fence when it comes to this battery. Its innovative design does provide unparalleled voltage stability, but its low capacity even at moderate discharge rates dampens the fun significantly. Additionally, the 2.1 amp discharge limit could prove to be a bottleneck for some high-drain applications; this, coupled with the cell’s tendency to shut down abruptly when the internal cell runs empty could potentially cause file system corruption for digital cameras that have not been designed to handle such sudden power interruptions.
Also, the batteries are very costly. At about $10 per cell, you may want to think twice about replacing all your current disposable and rechargeable batteries with these newfangled Li-ion ones. Don’t forget the charger either, as a special charger is required to make contact with a recessed terminal on the top of the battery.
Overall, this cell is… interesting. Just don’t expect a miracle in a steel can.
Bottom Line: This is a niche product and should not be considered a universal replacement for alkaline or Ni-MH AA batteries.
It’s been a while since I’ve posted about the Kentli PH5 battery, which is a Li-ion cell with an integrated 1.5-volt regulator, wrapped up in an AA-sized package. Although I haven’t written much about its performance yet, that doesn’t mean I haven’t been doing work on it. In fact, I’m sure I have never put so much work into a single blog post before!
The full analysis of the battery’s performance is not fully complete, but I’ll reveal some details of my test setup and what I’m currently working on:
I’m doing a much more thorough analysis of this battery than I have done with any other one on this blog. I have created a second bq27541 fuel gauge board, but with the explicit goal of measuring the voltage, current, passed charge (mAh) and temperature of a given DC-DC converter. This way, I can measure the input and output of the DC-DC converter simultaneously, greatly enhancing the data I can collect.
These are the data points/attributes I am currently collecting:
I want to be as thorough as possible with my measurements, mostly because nobody else has done a detailed performance review of this rather unusual battery, but also partially because I want to challenge myself and see how much of a “real engineer” I can be (#JustHobbyistThings). 😛
June 17, 2015 – Performance analysis/review HERE!
After having an entire month of dormancy on this blog, I’m finally beginning to cross off the blog posts on my “Pending” list.
Last year, I made a blog post talking about Kentli’s lithium-ion based AA battery that has an internal 1.5 volt regulator. The first order never arrived, and the second one had arrived a few months ago but I never got to actually taking one of the cells apart. That changes today.
The battery itself looks like a regular AA battery, except for the top positive terminal. There’s the familiar ‘nub’ that constitutes the 1.5 volt output, but also has a recessed ring around it that provides a direct connection to the Li-ion cell’s positive connection for charging.
After peeling the label, we are met with a plain steel case, save for the end cap that appears to be laser spot-welded. Wanting to take apart the cell with minimal risk of shorting something out inside, I used a small pipe cutter to gently break apart the welded seam. Two revolutions and a satisfying pop sound later, the battery’s guts are revealed.
The PCB that holds the 1.5 volt regulator is inside the end cap, with the rest made up of the Li-ion cell itself. Curiously enough, the cell inside is labeled “PE13430 14F16 2.66wh” which is interesting in more than one way. First of all, the rated energy content of the cell is less than what’s on the outside label (2.66 watt-hours versus 2.8), and the cell inside is actually a Li-ion polymer (sometimes called a “Li-Po” cell) type; I was expecting a standard cylindrical cell inside. Unfortunately, my Google-fu was unable to pull up any data on the cell. I might attempt to do a chemistry identification cycle on the cell and see if TI’s battery database can bring something up.
The end cap’s PCB uses a Xysemi XM5232 2.5 A, 1.5 MHz synchronous buck converter to provide the 1.5 volt output. According to the datasheet, it is a fully integrated converter with all the power semiconductor components residing on the chip itself. The converter is rated for 2.5-5.5 volt operation, well within the range of a Li-ion cell. Additionally, it has a rated Iq (quiescent/no-load current) of only 20 microamps. The buck converter’s 2.2 microhenry inductor is magnetically unshielded which may cause some increased EMI (electromagnetic interference) emissions, but I don’t have the equipment to test this.
I was looking around for the battery’s protection circuit, and found it on the flex PCB that surrounds the Li-ion cell. It uses a Xysemi XB6366A protection circuit which, like the buck converter, is a fully-integrated device; there are no external protection MOSFETs for disconnecting the cell from the rest of the circuit.
December 14, 2015 – After extensive and detailed analysis (148 MB of text files!), I’ve analyzed the battery’s voltage and output capacity, which can be viewed HERE (lots of pretty graphs; check it out!).
The data doesn’t stop there. It took almost three years to track the cell’s self-discharge, but the data is finally in. The final report is available here, but previous installments are available here (Part 1), here (Part 2), here (Part 3), here (Part 4) and here (Part 5).
Considering how popular the iPhone is, there’s always going to be some counterfeits out there. I’ve been out buying various iPhone batteries to build a database of each generation’s characteristics, but one model has eluded me so far: the iPhone 5S. The iPhone 5C’s battery that I bought appears to be genuine (but with its own issues), but none of the iPhone 5S batteries I’ve bought so far (4 of them at the time of writing this blog post) were genuine. All of these fakes look like a genuine battery at first glance, but all of them share a few common traits.
The fake battery sports the usual iPhone battery information, complete with some dot-matrix printed data and a data-matrix barcode. It’s labeled with a capacity of 1560 mAh and 3.8 volts nominal voltage.
The connector itself has two points for soldering the connector to provide durability. However, with the fake batteries, they are not soldered down. The two spots on the ends of the connectors are dark with a small point visible inside it (that point is the reinforcement pin on the connector). If this connector is installed in an iPhone, it will probably not come out without either damaging the battery’s connector, or worse, leave the plastic connector piece inside the phone, requiring tweezers to remove.
Removing the black protective tape reveals an iPhone 4 battery fuel gauge board. The connector is soldered to this board, with four solder points visible.
Pulling out the PCB reveals another characteristic of these fake batteries: the positive terminal is cut short, with another metal section being clumsily spot-welded to the stub on the cell.
Battery fuel gauge data
The battery fuel gauge requires proper programming to accurately indicate the battery’s charge status. Because of this, each iPhone battery generation has its own specific configuration.
The fake iPhone battery retains the programming for the iPhone 4’s battery, which is a designed capacity of 1420 mAh, using a bq27541 fuel gauge running version 1.25 firmware. The data inside it is often that of a used/recycled battery as well.
This data can be (partially) read out directly from the iPhone with a tool such as iBackupBot, but more data can be read if the battery is read with another tool. I have the EV2400 from Texas Instruments to read this out on a PC, but this data can be read out with a USB-to-TTL serial port, a logic gate (a logic inverter) and a small MOSFET transistor.
I created a small tool that uses this circuit to interface with the fuel gauge and read out its data. Check it out here.
Using my tool, this is the report for one of these fake batteries. Note how it is identified as an iPhone 4 battery. Don’t be fooled by the calculated state of health. It’s not accurate for this battery as the fuel gauge still thinks it’s still inside an iPhone 4 battery pack.
**** START OF HDQ BATTERY LOG REPORT **** HDQ Gas Gauge Readout Tool version 0.9 by Jason Gin Date: 9/30/2014 Time: 0:52:24 Serial port: COM26 Battery Identification ======================== DEVICE_TYPE = 0x0541, FW_VERSION = 0x0125, DESIGN_CAPACITY = 1420 mAh Battery's configuration matches that of a standard iPhone 4 battery. Basic Battery Information =========================== Device = bq27541 v.1.25, hardware rev. 0x00B5, data-flash rev. 0x0000 Voltage = 3804 mV Current = 0 mA Power = 0 mW State of charge = 45% Reported state of health = 0% Calculated state of health = 99.3% Cycle count = 14 times Time to empty = N/A (not discharging) Temperature = 27.9 °C (80.3 °F) (3009 raw) Designed capacity = 1420 mAh Heavy load capacity = 628/1410 mAh Light load capacity = 673/1455 mAh Advanced Battery Information ============================== Capacity discharged = 0 mAh Depth of discharge at last OCV update = ~778 mAh (8768 raw) Maximum load current = -200 mA Impedance Track chemistry ID = 0x0163 Reset count = 11 times Flags = 0x0180 Flag interpretation: * Fast charging allowed * Good OCV measurement taken * Not discharging Control Status = 0x6219 Control Status interpretation: * SEALED security state * SLEEP power mode * Constant-power gauging * Qmax update voltage NOT OK (Or in relax mode) * Impedance Track enabled Pack Configuration = 0x8931 Pack Configuration interpretation: * No-load reserve capacity compensation enabled * IWAKE, RSNS1, RSNS0 = 0x1 * SLEEP mode enabled * Remaining Capacity is forced to Full Charge Capacity at end of charge * Temperature sensor: External thermistor Device name length = 7 bytes Device name: bq27541 **** END OF HDQ BATTERY LOG REPORT ****
Battery fuel gauges are the unsung hero of the battery world. There’s more to it than just measuring the voltage on the battery terminals,. These little chips are microcontrollers (tiny computers, essentially) that sit inside the battery pack and keep tabs on the battery’s performance for the life of that battery pack.
Texas Instruments makes battery fuel gauges that are small enough to fit in the circuitry of a cell phone, and one of the most common ones that uses this technology are iPhone batteries. These batteries use a single-wire interface called HDQ (which stands for High-Speed Data Queue). It may sound similar to Dallas Semiconductors’ 1-Wire protocol, but the two are completely different and incompatible with each other.
The HDQ protocol can be emulated with a serial port and a little bit of external circuitry. The protocol can be emulated with a serial port at 57600 baud with 8 data bits, no parity bit and 2 stop bits. Because this is a bi-directional bus, an open-drain configuration is needed. Most TTL serial ports are not open-drain, so some circuitry is required to do this. TI’s application note suggests using a CMOS inverter and an N-channel MOSFET along with a 1 kOhm pull-up resistor, but this can be cut down with a 74HC07 open-drain buffer and pull-up resistor.
[EDIT: June 13, 2015 – Corrected schematic]
The HDQ protocol uses a short pulse to indicate a logic 1, with a longer pulse to indicate a logic 0. The data is sent LSB (least significant byte) first, with a 7-bit address and an eighth bit to indicate if the operation is a read or write (0 is read, 1 is write). If it is a read operation, the fuel gauge will respond with one byte of data. As you might think, this is a very slow means of communication; the typical bus speed is 5-7 kilobits per second, but the actual usable throughput will be less than this.
The hack in this is that the bit timing can be made by sending a specially crafted UART byte that meets the timing specifications. Each bit takes up one byte of UART buffer memory, with 24 bytes being enough to perform an HDQ read (the first 8 bytes are echoed back to the PC and need to be ignored by the software). TI’s application note goes into this with a bit more detail.
Windows HDQ utility
I have written a small Windows program that will read out the battery’s main data, identify as a certain iPhone battery model (most iPhone batteries are supported), and save a copy of this data to a text file for safekeeping. This program requires the National Instruments LabWindows/CVI Runtime library to run, since I whipped this program up with the first available IDE on my college PC.
The source code is not yet available (translation: I’m too ashamed of my programming skills to share it with others); however, a Windows executable is available for download below.
You will need to download the National Instruments LabWindows/CVI Runtime to run this program.
Contributions are always accepted! Email me if you would like to send in a battery for me to analyze, or you can buy me a coffee through PayPal:
[EDIT – July 28, 2016] Welp, looks like the PayPal button’s broken (or was it never working to begin with…?). If you’d like to send anything to me, just give me a shout at email@example.com!
[EDIT – August 2, 2016] Whoops, looks like I never had the button working in the first place. Hopefully it works this time.
Been a while since I’ve posted anything on here, but I decided to share my thoughts on a peculiar AA battery.
This AA battery is the Kentli lithium-polymer AA cell. It has a built-in 1.5 volt regulator that converts the typical 3.7 volts down to 1.5 volts (open-circuit at least). I bought a 4-pack of these cells from AliExpress back in October, but have yet to receive them. Even though I haven’t gotten them, there is some things that I’ve taken note of.

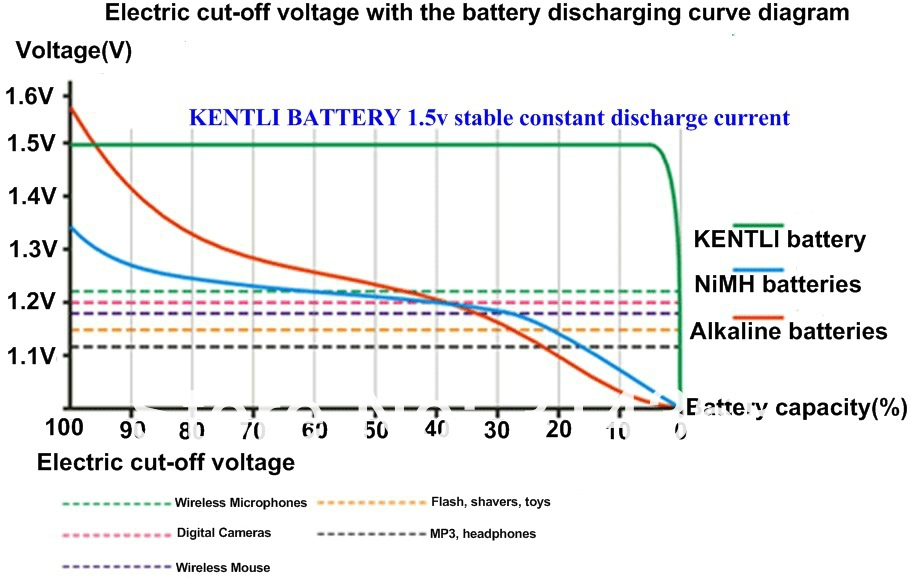

A graph promoting the battery discharge curve of the Kentli cell is shown below, taken from a sales page on AliExpress (rehosted on this blog to prevent image bandwidth-hogging):
The interesting thing I found out was the green dashed line. This is supposed to represent the output voltage when used in a wireless microphone. However, the graph itself provides no meaningful data because no current loads are specified at all. In an attempt to get some sort of information from the graph, a Google search for a spec sheet for a typical microphone gives a discharge current of 125 mA. But a 0.3 volt drop at 125 mA? I dunno, this doesn’t seem right.
From a safety point of view, I’m not sure about how much temperature would rise in the cell from high current draw and whether overheating could occur in use, and if any typical Li-Ion protection circuitry is used (voltage and discharge protection). Given how this is made by some relatively unknown Chinese company, who knows.
I’m not saying anything definite until I see these cells and have a chance to get my paws on them for testing and disassembly. Until then, we’ll just have to wait.
