Discreet Quality: Review of the sketchiest-looking 512GB Lexar SDXC card

Posted on by
Reply

It’s amazing how much Flash-based storage technology has advanced in the last few years, especially considering how much prices have dropped.

Naturally, when it comes to speed, capacity and price, consumers tend to look for the lowest price; as manufacturers race towards the bottom line, many will take the low road and sell counterfeit goods. This is especially prevalent in the NAND Flash market, and online marketplaces like eBay, AliExpress and even Amazon are fraught with countless fake storage devices that claim high capacities at too-good-to-be-true prices. It’s not uncommon to see unrealistic capacities sold for a few tens of dollars, but what the customer ends up receiving is a storage device with a falsified capacity that will pass a simple copy-paste test but will corrupt itself with extended use.

While browsing eBay for some deals on some Flash storage, I happened upon a very strange-looking 512GB SDXC card. It was listed as an OEM Lexar card but had no labels, selling for an unprecedentedly low price of $60 USD (the card would cost several times more at normal retail outlets). On the outside, everything about the card’s exterior seems to raise a red flag that the card is not to be trusted.

Lexar OEM 512GB Listing

eBay listing of the Lexar OEM 512GB SDXC card

Upon closer inspection, there are some hints that one shouldn’t always judge a book – er, card – by its cover. The laser-etched markings might look like cryptic gibberish to the layperson, but the markings “SM2702BAC” and “L95B” have actual meanings; the SM2702 is an SD card controller by Silicon Motion, and L95B refers to the 16nm generation of MLC NAND Flash by Micron, which owns the Lexar brand (but unfortunately is being discontinued). The seller also says that the cards have been tested, which is reassuring.

I decided to take the plunge and plunk down about $80 USD including shipping (or $105 CAD at the time) and buy a card for myself.

A Closer Look

After waiting a few weeks, the card showed up in my mailbox. The seller did a very good job packaging it, even placing the card in an ESD shielding bag before wrapping it with foam and placing it in a bubble mailer (it’s much better than the plastic wrap I’ve had some used i7 CPUs by a huge amount).



Back of the Lexar OEM 512GB SDXC card
Front of the Lexar OEM 512GB SDXC card

The card looks very plain, with the top label area lacking any labeling, and the same laser-etched markings on the back. The card’s contacts indicate that it has been placed in a card reader a few times before (presumably for testing).

Card Identification

I used my old Gateway M-7305u laptop with Kali Linux to see what information the card reports. These older laptops have true SDA (SD Association) compliant card slots, so they will identify as an actual SD card instead of a USB drive like with many modern laptops; in Linux these show up as devices like /dev/mmcblk0 instead of /dev/sda. By using the “dmesg -wH” command I can read the kernel logs once the card is connected to the computer.

[Jan24 10:52] mmc0: new high speed SDXC card at address 59b4
[ +0.094917] mmcblk0: mmc0:59b4       483 GiB
[ +0.001111] mmcblk0: p1

The card reports a capacity of 483 GiB (that’s binary gigabytes, or 519.6 decimal – a.k.a. “weasel” – gigabytes), but the SD card name is ”     ” – five ASCII spaces. Everything about the card superficially rings alarm bells! However, I wasn’t phased, and decided to try the card in my Kingston FCR-HS4 USB 3.0 card reader, which uses the Realtek RTS5321 chipset.

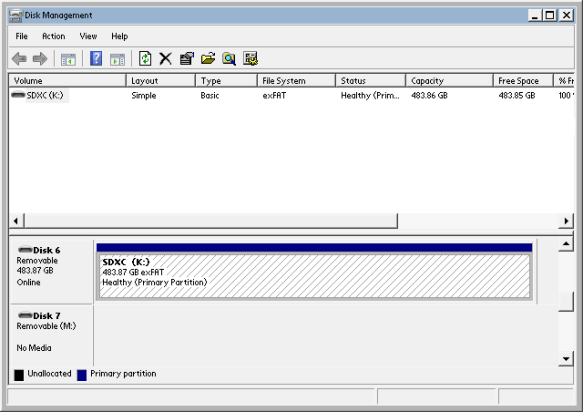

Lexar OEM 512GB Partition

OEM Lexar 512GB SDXC card in Disk Management

Examining the card in Windows shows that the card was formatted as exFAT with a drive name of “SDXC”, suggesting it may have been formatted by the seller with the SD Formatter tool. Looking at the raw sector data in Hard Disk Sentinel suggests that the seller indeed do a full capacity test, as the data patterns match that of the program H2testw, an excellent tool for detecting fake Flash memory. This is a good sign – the seller did their due diligence and by this point I already had a good feeling that the card is genuine.

However, I wanted to test this for myself, so I ran the H2testw utility myself and let it run on the card. The write speed remained consistent throughout, which is a good indication that the card is not overwriting memory locations like in fake Flash storage (the card did get uncomfortably hot during the process, however). It took four hours to complete the write and read test, but everything came out clean – the card is genuine, even when every other sign says otherwise!

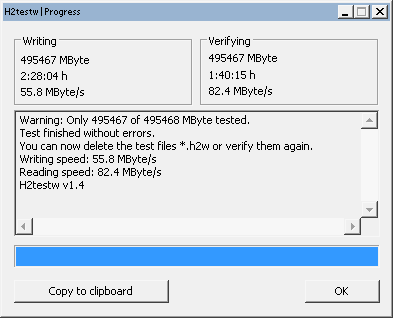

Lexar 512GB OEM H2testw

H2testw verifying that the OEM Lexar card’s 512GB capacity is genuine

Performance

With the card verified, it was time to put it to the test.

CrystalDiskMark

The card showed sequential read speeds of 92.03 MB/s and sequential write speeds of 60.45 MB/s; the sequential write speed coincides with the seller’s rating of 400x (400 * 150 kB/s = 60 MB/s).

The random 4K I/O performance isn’t great, especially with writes, but it isn’t bad either. The card managed 4K random read speeds of 6.644 MB/s (1700.9 IOPS) and 4K random write speeds of 0.671 MB/s (171.8 IOPS).

Lexar 512GB OEM Benchmark

Benchmark of the 512GB Lexar OEM SDXC card in CrystalDiskMark 3.0.4

Conclusion

In the end, I was satisfied – I got a 512GB SDXC memory card at a fraction of the cost from a normal retail outlet. It’s not exactly a speed demon, but it’s not a slowpoke either. The looks may be deterring for most folks (and rightly so), but with the right tools and knowledge, one can pick up one of these less aesthetically-pleasing memory cards and save some serious coin in the process.

Advertisement

eMMC Adventures, Episode 3: Building a custom adapter to use cheap eMMC-based 32GB SSD modules

Posted on by
28

As seen on Hackaday!

While on my quest for more eMMC-based storage devices, I stumbled upon a few devices that piqued my interest: eMMC-based SATA SSDs! I found two models of particular interest: Dell had M.2 modules with a 2.5″ adapter, and HP had custom boards intended for use in cheap laptops (for example, the HP 14-an012nr). Although the former was easier for me to use (but not acquire), I will be focusing on the latter in this blog post.

Overview of HP 14-am/14-an Series SSD Module

Unlike Dell’s convenient M.2 modules, the cheaper boards from HP (costing about $12 USD when I purchased them) had a physical interface intended for use only with its intended host; despite using a SATA interface, physically it used a 10-pin FFC (Flat Flexible Connector, aka “ribbon cable”) since it was designed to work only with HP’s 14-am/14-an series of  low-cost laptops. The boards are labeled “DINERAMD-6050A2862201-DB-A01” and have a copyright date of 2016 in my case.

The BayHub OZ788WR2 Bridge Chip

These eMMC-based SSDs use a curious little chip, the BayHub OZ788WR2 (labeled 788WR2A on the chip itself). It is an SD/MMC-to-SATA adapter, with an SD UHS-II/MMCplus HS200 device interface and SATA II 3Gbps host interface. Apart from the brief description from the manufacturer, no other data is available for the chip (and even finding the chip online is basically impossible).

It’s a shame that so little is known about this chip (and that it’s so rare to find in actual devices), especially since high-performance SD-to-SATA adapters otherwise do not exist, as they use outdated SD-to-CompactFlash adapter chips that are limited to 25 MB/s speeds. If I had the engineering expertise, time, money, and ability to acquire these chips, I’d totally try to make an SD-to-SATA adapter with this chip… but alas, that will still remain a fantasy.

Step 1: Pinout Discovery

The single connector on the eMMC SSD is a ZIF FFC (Zero Insertion Force, Flat Flexible Connector), with no publicly available pinout or any other information. Perhaps this was why I got them for so cheap – apart from holding only 32 GB, nobody could even use them in their own computer even if they wanted to!

When trying to reverse engineer an unknown connector pinout, one needs to first look for ground pins. This is easily accomplished by using a multimeter with a continuity or diode test function, with the multimeter’s positive lead on a known ground point on the DUT (Device Under Test) – screw holes are often good candidates to look for. Ground pins will read as a short, but active IC and power pins will look like a forward-biased diode – appropriately 0.5 to 1 volt. I found 3 power pins (these are often grouped together on connectors for greater current capacity), 3 ground pins, and 4 SATA data pins. The data pins don’t show up on the multimeter test since they have series AC coupling capacitors, but they are easily located next to the connector and have clearly visible differential pairs leading to them.

The issue now is trying to find what order the SATA data pins are in, and how they relate to a regular SATA interface. As it turns out, the pinout is very simple: it matches the pinout of the 7-pin regular SATA interface! This makes sense as the SSD module and the laptop itself are designed to be cheap to manufacture.

Step 2: Building the Adapter (Take 1)

With the pinout known, the harder part is wiring up the connector. However, without a matching connector for the ribbon cable, I have no choice but to solder to it.

As I soon learned, not all flex cables are made of heat-resistant polyimide (aka Kapton) – this one melted before I could even tin the exposed leads. No matter, I’ll just use my trusty magnet wire and hook up the data and power lines! With the help of a salvaged SATA connector from a dead laptop drive, I was able to cobble together a crude adapter for the eMMC SSD board.

Although I didn’t end up taking a picture of the adapter, it wasn’t pretty. It also wasn’t very functional either – although the eMMC SSD board was able to identify itself (on my PC it showed up as a “BHT WR202HH032G E70211F5”), I couldn’t actually perform any data transfer without causing the OZ788WR2 to log hundreds of interface checksum failures (but hey, it supports S.M.A.R.T. data reporting!).

After some tweaking of the wire spacing, I was able to get the adapter stable enough to work, and encased it in hot glue for protection. It lasted a few weeks but eventually stopped working because one of the data wires broke off inside the blob of hot glue. Additionally, the outer contacts on the ribbon cable connector were peeling away from its plastic substrate. It was time for a rebuild.

Step 3: Building a Dedicated eMMC SSD (the teaser!)

Since I had multiple eMMC SSD boards, I took one, replaced the eMMC with a 128GB one from Samsung (the KLMDG8JENB-B041) and removed the ribbon cable connector. In its place, I used some very thin twinaxial cable from a dead MacBook and used a gutted CFast-to-SATA adapter for a shell. Stay tuned for that in another blog post!

Step 4: Building the Adapter (again!)

Much like my previous attempt, I used a salvaged PCB from a dead laptop drive, but left a lot of it instead of chopping it off directly at the connector. This particular one was a dead Samsung HDD, and it had one particular feature that I could use to make a stronger adapter: it had a TSOP footprint for the DRAM cache, which was just the right pitch for me to solder the ribbon cable to!

With a little help of my hot air rework station, I removed the DRAM cache and DC-DC converter, leaving the SATA AC coupling capacitors and the power input components (filtering choke and capacitors, and input overvoltage protection) behind.

After scraping off some solder mask, I soldered the SATA data wires and the ground wires surrounding them with very thin magnet wire, trying to keep the data pairs as close to each other as possible to minimize the chance of interference causing problems. The power wire was soldered to the power input components, right next to the input capacitor for better power delivery.

After checking with the multimeter that no short circuits were present, I hooked up an eMMC board and plugged it into my PC. It enumerated without issues, and running several tests including CrystalDiskMark, h2testw, and Hard Disk Sentinel’s random read test, amassing several hundreds of gigabytes in reads and writes with zero CRC errors logged in the S.M.A.R.T. data.

With everything checked out, I cleaned the circuit with isopropyl alcohol and covered the exposed end of the ribbon cable and the magnet wires with clear epoxy for protection. I also used a bit of epoxy on the flex connector to re-secure the lifted contacts to the substrate.

Conclusion

With a bit of wire and a circuit board from a dead HDD, I was able to reuse cheap eMMC-based SATA SSDs on computers that they weren’t meant for (and they even had copies of Windows 10 Home with extractable license keys! 🙂 ). Although not as fast as a modern full-fledged SSD, its relatively high 4K IOPS performance means it works well enough as a quick boot drive for running quick tests of OS installation without needing to sacrifice a bigger drive just for testing – and they consume less than a watt even when fully active!
